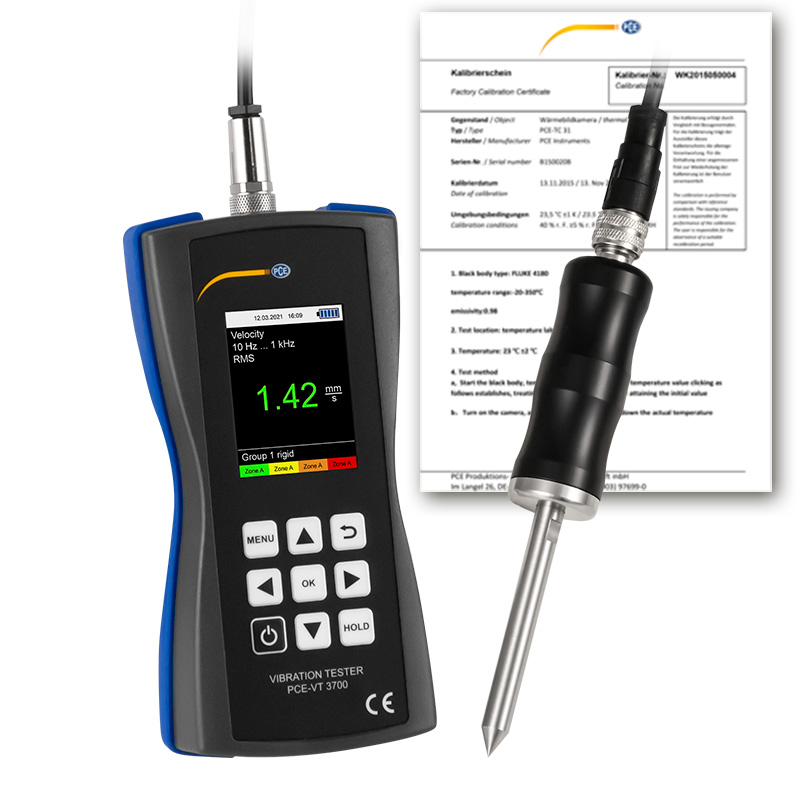

PCE VT 3700S-ICA Vibration Meter (0~399,9 m/s²; 0~399,99 mm/s; 0~3,999 mm; ISO Calibration Cert.)

- Measuring range: Acceleration

0.0 - 399.9 m/s² / 0.0 - 15744 in/s²

Resolution: 0.1 m/s² / 3.94 in/s²

Accuracy: @ 160 Hz±2 %

Frequency range: 1 kHz - 10 kHz; 10 Hz - 10 kHz

- Measuring range: Velocity

0.00 - 399.99 mm/s / 0.00 - 15.74 in/s

Resolution: 0.01 mm/s / 0.0039 in/s

Accuracy: @ 160 Hz±2 %

Frequency range: 10 Hz - 1 kHz

- Measuring range: Displacement

0.000 - 3.999 mm / 0.000 - 0.154 in

Resolution: 1 µm / 39.4 µin

Accuracy: @ 160 Hz±2 %

Frequency range: 10 Hz - 200 Hz

Measurement parameters: RMS, Peak, Peak-Peak; Crest factor

Units: switchable metric / imperial

Display: 2.4" LC display

Menu languages: English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese

Power supply: 3 x 1.5 V AA batteries

Operating and storage conditions: -20 ... +65 °C / -4 ... 149 °F; 10 ... 95 % r.H.

Dimensions: 150 x 80 x 38 mm / 5.9 x 3.1 x 1.5"

Weight: 170 g / 6 oz

-Technical Data Vibration Sensor:

Resonance frequency: 24 kHz

Transverse sensitivity: ≤ 5%

Destruction limit: 5000 g (peak)

Operating and storage temperature: -55 ... +150 °C / -67 ... 302 °F

Housing material: stainless steel and plastic

Mounting thread: ¼ - 28“

Dimensions: Ø 29 x 81 mm / 1.14 x 3.18"

Weight (without cable): 119 g / 4.2 oz

Delivery Scope:

1 x Vibration Meter PCE-VT 3700S-ICA

1 x Sensor with spiral cable PCE-VT 3xxx SENSOR

1 x Magnet adapter PCE-VT VMH

1 x Needle sensor PCE-VT NP

1 x Handgrip PCE-VT 3xxx HANDLE

3 x 1.5 V AA batteries

1 x Quickstart guide

1 x Service bag

1 x ISO calibration certificate
