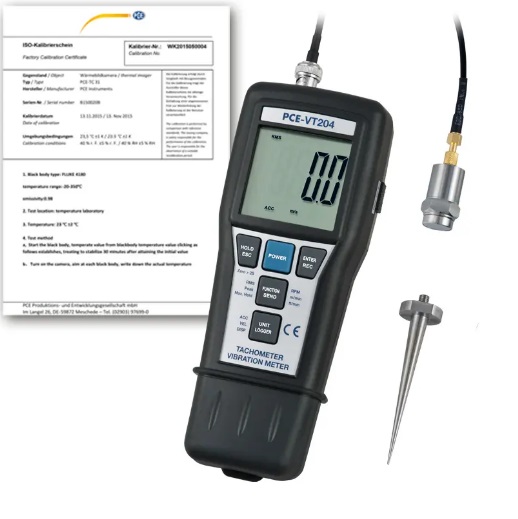

PCE VT 204-ICA Vibration Meter (0,5~199,9 m/s²; 0,5~199,9 mm/s; 0,005~1,999 mm; ISO Calibration Cert.)

-Vibration measuring range:

Acceleration: 0.5 ... 199.9 m/s², 0.05 ... 20.39 g, 2 ... 656 ft/s²

Velocity or speed: 0.5 ... 199.9 mm/s, 0.05 ... 19.99 cm/s, 0.02 ... 7.87 in/s

Displacement (peak to peak / p-p): 0.005 ... 1.999 mm, 0.002 ... 0.078 in

-Resolution:

Acceleration: 0.1 m/s²

Velocity or speed: 0.1 mm/s

Displacement (p-p): 0.001 mm

-Accuracy:

Acceleration: ±5% ±2 digits

Velocity or speed: ±5% ±2 digits

Displacement (p-p): ±5% ±2 digits

-Frequency:

Hertz (Hz): 10 ... 1000 Hz

Kilohertz (kHz): 0.01 ... 1 kHz

-Revolutions per minute (RPM) measuring range:

Optical or noncontact: 10 ... 99999 RPM

Mechanical or contact: 0.5 ... 19999 RPM

Velocity or speed: 0.05 ... 1999 m/min, 0.2 ... 6560 ft/min

- Resolution:

0.1 RPM<1000 RPM

1 RPM≥1000 RPM

0.01 m/min<100 m/min

0.1 m/min≥100 m/min

0.1 ft/min<1000 ft/min

1 ft/min≥1000 ft/min

Accuracy±0.05% ±1 digit

Optical measuring distance: 50 ... 1500 mm / 2 .... 59 in (depending on surface)

-General properties:

Internal memory: Stores up to 1000 readings

Data output: RS-232 port

LCD: 45 x 48 mm / 1.77 x 1.88 in

Power supply: 4 x 1.5V AA batteries

Dimensions: 188 x 76 x 47 mm / 7.4 x 3.0 x 1.9 in

Operating conditions: 0 ... 50ºC / 32 ... 122°F / <80% RH

Weight: 400 g / < 1 lb

Enclosure: Plastic

Delivery Scope:

1 x PCE-VT 204 condition monitoring vibration meter

1 x Flat sensor with 1.5 m / .06 in cable

1 x 70 mm / 2.8 in needle sensor

1 x Magnetic base

1 x Mechanical wheel sensor

1 x 600 mm / 23 in of reflective tape

1 x Carrying case

4 x Batteries

1 x User manual

1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
