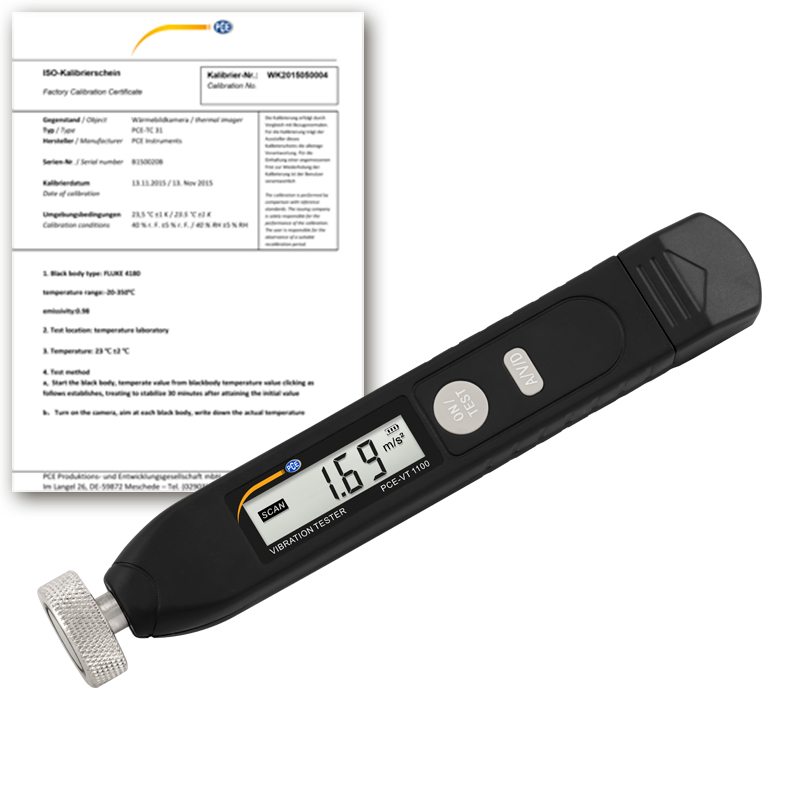

PCE VT 1100M-ICA Vibration Meter (0,01~199,9 m/s²; 0,01~199,9 mm/s; 0,001~1,999 mm; ISO Calibration Cert.)

Parameter Measuring Range Frequency Range

Acceleration; 0.01 ... 199.9 m/s² peak 10 Hz ... 1 kHz

Vibration speed: 0.01 ... 199.9 mm/s rms 10 Hz ... 1 kHz

Displacement: 0.001 ... 1.999 mm p-p 10 ... 500 Hz

Measurement accuracy:

Acceleration: ≤ 3 %

Vibration speed: ±5 %, ±2 Digits

Displacement: +10/-20 % (10...20 Hz); ±5 % (20...1000 HZ)

General specifications;

Display: LCD, Response time approx. 1 second

Power supply: 2 x 6V CR2032 button cell

Battery life: About 5 hours (in continuous operation)

Environmental conditions: 0 ... 40°C / 32 ... 104°F, 0 ... 84% r.H.

Dimensions: 155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7 in

Weight: ca. 40 g / 1.4 oz (incl. batteries)

Delivery Scope:

1 x Vibration Analyzer PCE-VT 1100M

1 x Magnetic sensor

1 x PCE-VT-NF-10 standard probe (length 10 mm)

2 x Batteries

1 x Carrying case

1 x Storage box

1 x User manual

1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
