- Acceleration:
Measurement Range: +0.001 m/s² ... +200 m/s²
Resolution: 0.001 m/s²
Accuracy: ± 5 %
- Velocity:
Measurement Range: +0.001 mm/s ... +200 mm/s
Resolution: 0.001 mm/s
Accuracy: ± 5 %
- Displacement:
Measurement Range: +0.001 µm ... +2000 µm
Resolution: 0.001 µm
Accuracy: ± 5 %
- Optical Rotational Speed:
Measurement Range: +10 rpm ... +200000 rpm
Resolution: 1 rpm
Accuracy: ± 5 %
- General Technical Data:
Number of Measurement Channels: 4
Frequency: 1 ... 25000 Hz
Display Type: VGA Color Display
Display Size: 3.5 inches
Storage Capacity: 4 GB
Data Interface: USB
Battery Capacity: 3200 mAh
Battery Voltage: 3.6 V
Battery Type: Lithium-Ion Battery
Operating Time: 8 hours
Selectable Auto Power Off: 30 ... 99999 s
Menu Language: German, English, Spanish, Polish, Russian, French, Chinese, Indonesian
Protection Class (Device): IP20
Power Supply: Battery, Power Adapter
Weight : 460 g / 1.0 lb
Device Weight with Accessories: 2800 g / 6.1 lb
Device Weight with Accessories and Packaging: 2800 g / 6.1 lb
Dimensions (L x W x H): 220 x 100 x 42 mm / 8.6 x 3.9 x 1.6 in
Additional Dimensions: Sensor Cable Length: 140 cm
Operating Conditions: -10 ... 50 °C , 90 % r.H
Storage Conditions: -10 ... 50 °C , 90 % r.H
- Delivery Scope:

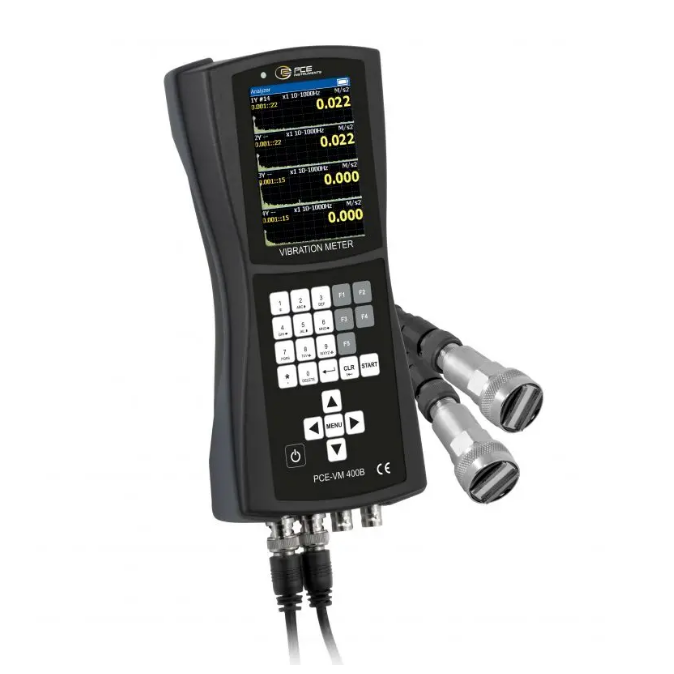

1 x Vibration Meter PCE-VM 400B
2 x Vibration Sensor
1 x Infrared Sensor
1 x Mount for Infrared Sensor
1 x Reflective Band
1 x Power Supply 5V/1A
1 x Micro-USB Cable
1 x Plastic Case
1 x User Manual
