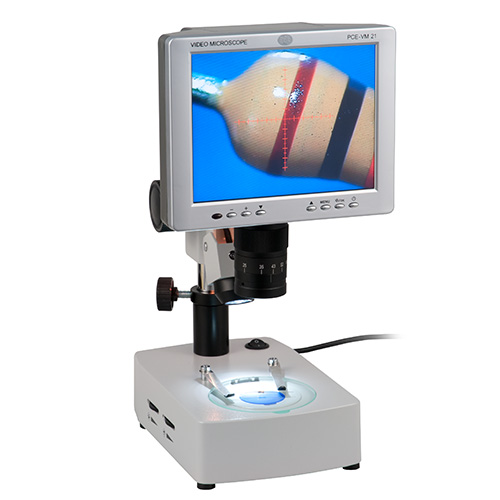

PCE VM 21 Inspection Camera

Specification

Display:8'' LCD

Resolution:800 x 600 pixels

Magnification:10 ... 75 times, continuous

The magnification is the ratio between the object as observed on the screen and the actual size of the object. Relevant parameters are the enlargement of the lens / CCD eyepiece and size of the CCD lens / display.

Field of view:

13.5 mm x 10 mm / 2.1 mm x 1.5 mm

0.5 in x 0.4 in / 0.08 in x 0.06 in

Power supply:100 ... 240V AC, 50/60 Hz

Delivery contents

1 x PCE-VM 21 microscope

1 x USB interface cable

1 x Video cable

1 x Power cable

1 x Dust cover

1 x Aluminum carrying case with key

1 x Object plate, glass

1 x Contrast plate, black / white

1 x Spare bulb for incident light illumination

1 x Spare bulb for transmitted light illumination

1 x Spare fuse

1 x Cleaning cloth

1 x User manual
