PCE VM 20-ICA Vibration Analyzer (0~200 m / s²; 0~200 mm / s; 0~2000 μm)

Vibration acceleration: 0 ... 200 m/s², RMS and Peak-Peak

Vibration velocity: 0 ... 200 mm/s, RMS

Vibration displacement: 0 ... 2000 μm, Peak-Peak

Accuracy vibration: ± 5%

Operating modes: Vibration, temperature, speed

Representable measured variables: Frequency; Vibration acceleration; Vibration velocity; Vibration; FFT spectrum

Units: Metric; Hz, mm/s², mm/s, μm, RPM, Hz

Interface: USB 2.0

Storage: 4GB micro SD card

Battery life: Up to 8 h continuous operation

Battery type: Lithium polymer

Display: 128 x 160 pixel color LCD

Environmental conditions: -10 ... 55°C / 14 ... 131°F; ≤ 80% RH not condensing

Dimensions: 132 x 70 x 33 mm / 5.2 x 2.8 x 1.3 in (L x W x D)

Weight: About 150 g / < 1 lb

Handset: must not be exposed to strong vibrations, magnetic fields, corrosive media or dust

-Technical data for the vibration sensor:

Sensitivity: 100 mV / g

Frequency response (± 3 dB): 0.5 ... 15,000 Hz

Frequency response (± 10%): 2.0 ... 10,000 Hz

Dynamic range: ± 50 g, peak

Power supply (IEPE): 18 ... 30V DC

Constant current source: 2 ... 10-mA

Spectral noise at 10 Hz: 14 μg / √Hz

Spectral noise at 100 Hz: 2.3 μg / √Hz

Spectral noise at 1000 Hz: 2 μg / √Hz

Output impedance: < 100 Ω

Bias voltage: 10 ... 14V DC

Housing insulation: > 100 MΩ

Environmental conditions: -50 ... 121 °C / -58 ... 249.8 °F

Maximum impact protection: 5000 g, peak

Resonant frequency: 23,000 Hz

Housing material: 316L stainless steel

Connection: 2 Pin MIL-C-5015

Protection: IP68

Weight: 90 g / < 1 lb

Delivery Scope:

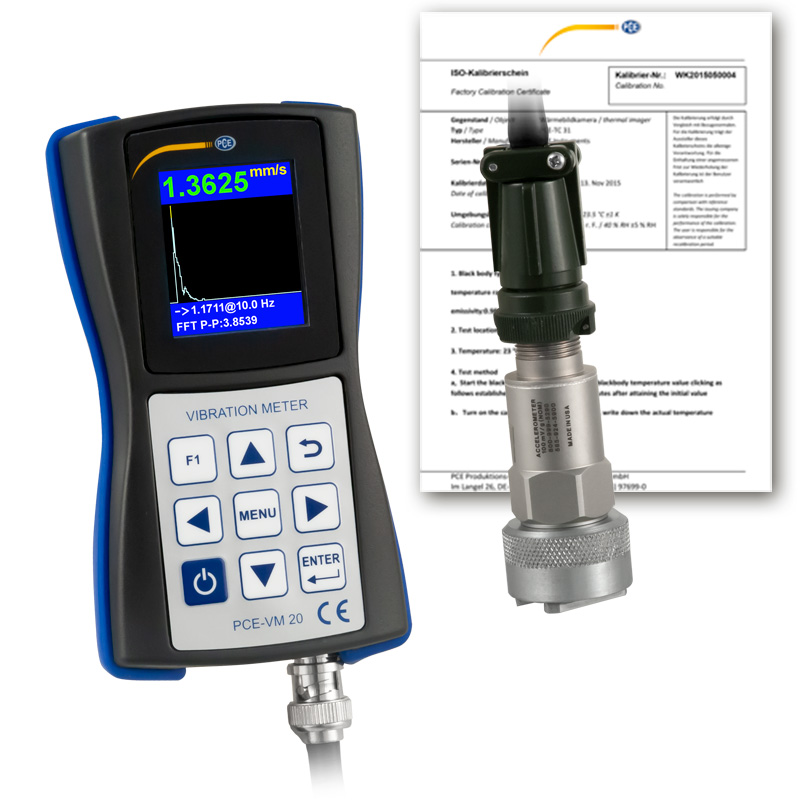

1 x Vibration analyzer PCE-VM 20-ICA

1 x Magn. Accelerometer with 1.8 m / 5.9 ft connection cable

1 x USB connection cable

1 x Charger 100 ... 240V AC

1 x PC software

1 x User manual

1 x ISO Calibration Certificate
