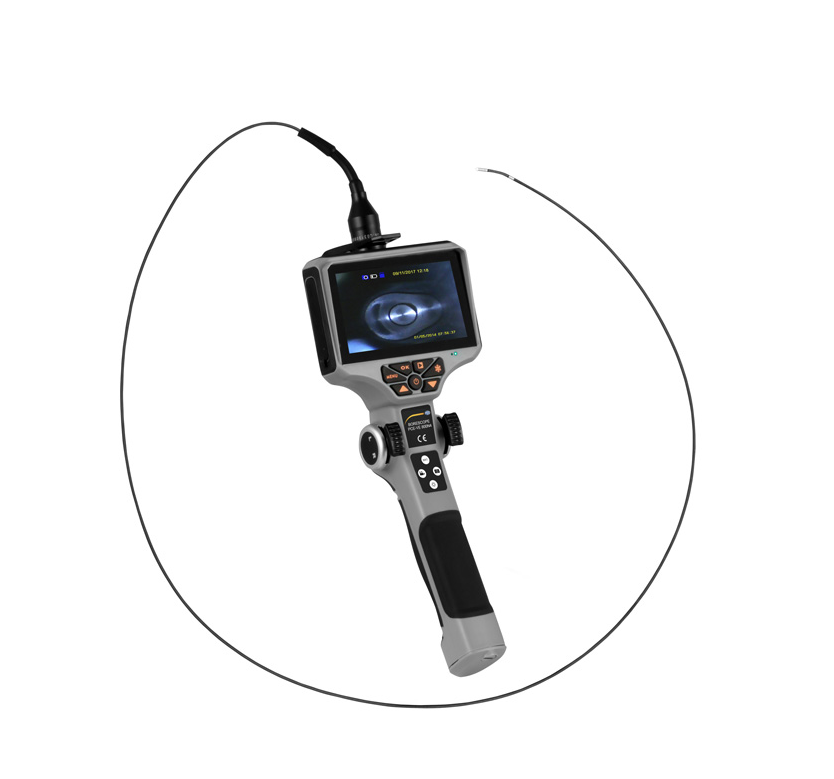

PCE VE 800N4 Inspection Camera (160000 pixels/ 4-way-head)

Cable / head diameter: 2.8 mm

Direction of movement camera head: 4-way

Length of camera head: 8 mm

Bending radius: 7 mm

Camera head material: Titanium alloy

Camera lens material: Glass

Perspective: 80°

Line of sight: 0°

Focus area: 5 ... 50 mm

Image sensor: 1/18" color

Resolution: 160000 pixels

Refresh rate: 30 Hz

Endoscope cable length: 1.5 m / 4.9 ft

Endoscope cable material: Tungsten

Degree of protection endoscope cable: IP58

Operating conditions:

Main unit: 0 ... 45°C / 32 ... 113°F, 15 ... 90% rH

Cable: 0 ... 60°C / 32 ... 140°F

Display: LCD 5" 16: 9 display

Interface: Micro USB

Video output: HDMI

Storage: SDHC memory card up to 64 GB

Power supply:

Li-ion battery 3350-mAh

5V power supply

Dimensions: 33.5 x 14.5 x 8 cm

Weight: Approx. 700 g / 1.5 lbs
