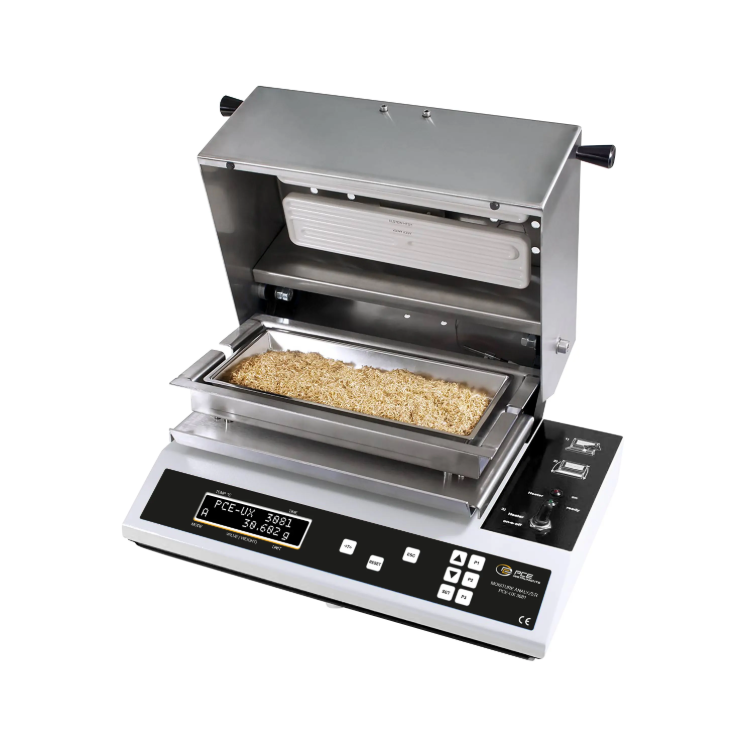

PCE UX 3081 Moisture Analyser Balance (0 ~100 %, 400 g; 0.001 g; 40~200 °C)

Absolute moisture

Measurement range up to: 0 ... 100 %

Resolution: 0.01 %

Accuracy: 0.01 %

Weighing range

Measurement range up to [Max]: 400 g

Resolution [d]: 0.001 g

Accuracy: 0.001 g

General technical data

Outputs: V24

Measuring functions: % moisture, % dry matter, % moisture bd, g residual weight / kg, Residual weight

Display type: LCD with backlight

Display size: 4 Inch

Interface: USB, RS232

Heating temperature: 40 ... 200 °C

Minimum load [min]: 20 g

Menu language: English, German, English (GB)

Protection class (device): IP20

Power supply: 230V AC | 48/63 Hz

Connector type: Schuko plug

Operating conditions: 10 ... 40 °C , 0 ... 90 % RH

Storage conditions: 10 ... 40 °C , 0 ... 90 % RH

Dimensions ( L x W x H x D ): 440 x 440 x 240 x 330 mm

Other dimensions: Inner pan size: 230 x 97 mm / 243 x 111 mm

Inner pan height: 17 mm

Weight: 13200 g
