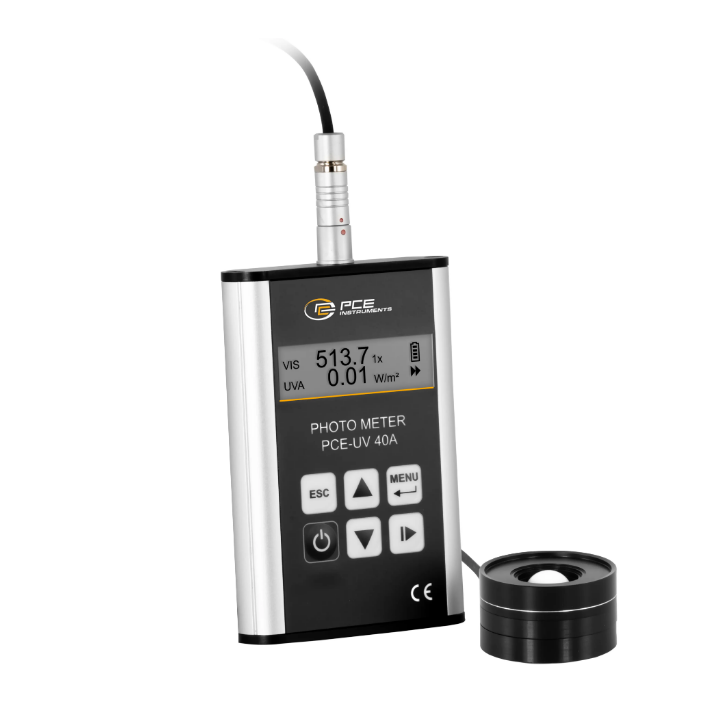

PCE PCE-UV 40A Light Meter (0 lx ~10 klx; 0.1 lx; 0 W/m2~+100 W/m2; 0.01W/m2)

- Light:

Measuring range: 0 lx ... 10 klx

Resolution: 0.1 lx

Accuracy: f1 ≤ 3%

- UV:

Measuring range: 0 W/m² ... +100 W/m²

Resolution: 0.01W/m²

Accuracy: According to EN ISO 3059 V(λ) CIE

∆λ1/10 320 – 395nm

∆λ1/2 337 – 385nm

λmax 365nm

Sλ=313nm < 5%

Sλ=405nm < 0.5%

- General technical data:

Display type: LCD with lighting

Storage medium: Internal memory

Storage capacity: 20 records

Interface: Mini USB

Norm(s): ISO/CIE 19476, EN ISO 3059, EN ISO 9934

Measuring rate: 1Hz

Menu language: English, Polish

Protection class (device): IP20

Weight: 148g / 0.3 lbs

Device weight with scope of delivery: 1198g / 2.6 lbs

Device weight including scope of delivery and outer packaging: 1377g / 3 lbs

Dimensions (L x W x H): 118 x 72 x 20 mm / 4.6 x 2.8 x 0.8 in

Other dimensions: Probe Ø44 x 25.5 mm

Cable length probe: 1.5 m / 4.9 ft

Extension rod: 460 mm / 18.1 in

Operating conditions: -10 ... 50°C / 14 ... 122°F, 0 ... 90% RH

Storage conditions: -10 ... 50°C / 14 ... 122°F, 0 ... 80% RH

Languages of the instructions: English

- Delivery scope:

1 x Light meter / lux meter PCE-UV 40A

1 x UVA / Lux sensor

1 x Sensor Holder

1 x Extension rod short to the sensor holder

1 x Transport case

1 x User Manual
