Manufacturer: PCE-UK

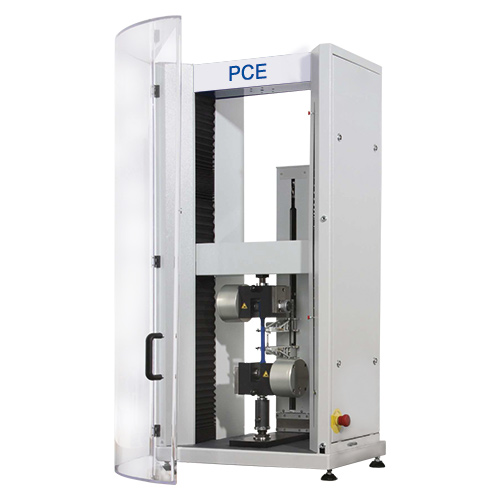

Model: PCE-UTU 50
Warranty: 12 months
Specifications
Rated load:50 kN
Accuracy class:0.5 / EN 7500-1
Drive:controlled DC motor
Test speed:0.001 ... 500 mm/min, Resolution: 1 µm
Distance measurement:incremental
Standard stroke:1000 mm (Without tensioning and tensioning adapters)
Work-life:450 mm
Supply:230 V AC, 50 Hz
Framework:
2 ground guide columns
2 ball circulating spindles
Column cover with bellows seal
Limit switch for travel limit
Powder coated housing parts
Colour: RAL 7035
Safety devices:Enclosure from Makrolon; Safety switching contact
Measurements:HxWxD 1330 x 650 x 530 mm
Weight:ca. 140 kg
Force transducer for UPM
Installed underneath the mobile traverse for compressive and tensile forces.
Measuring range:1 ... 50 kN
Nominal value:2 mV/V
Relative characteristic deviation:≤ ±0.1 %
Relative linearity deviation:≤ ±0.02 %
Relative creep error:≤ ±0.03 % after 30 min
≤ ±0.07 % after 8 h
Accuracy class:to EN ISO 7500-1, Class 0.5
Overload:50 %
Protection class:IP 67
TEDS module:integrated, to IEEE 1451-4
automatic sensor detection
Control and evaluation electronics
Measured value acquisition:1 kHz
Display:LC-Display
Interface:RS-232
Functions:
Force regulation
Distance regulation
Manual positioning
Processing of a programmed sequence
Specification of the crosshead speed
Return to the starting position
Cycles
Presetting limits for force / distance / time
Resetting the force / distance indicator to 0
Adjustable control factor
Breaking recognition
Maximum value memory
For 2 force transducer: choice of the work area
Dilivery Contents
1 x material test stand PCE-UTU 50
1 x force transducer (including mounting material, plug, socket and cabling)
1 x control and evaluation electronics
1 x intelligent measuring and control technology (including slave module)
1 x software
1 x instruction manual
