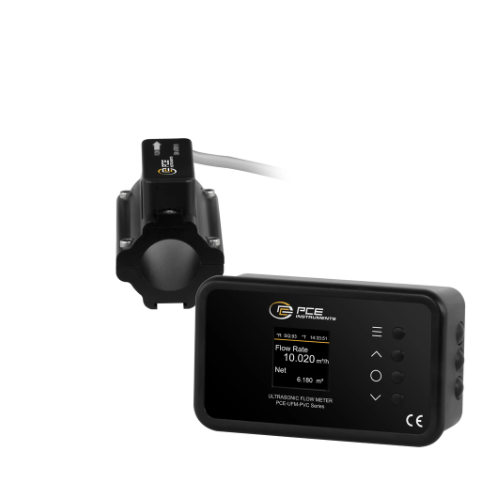

PCE UFM 20PVC Ultrasonic flow meter (0.04 ... 6 m³/h)

Specification

Speed

Measurement range up to: 0.03 ... 5 m/s

Resolution: 0.01 m/s

Accuracy: ±2 % of Rd (0.3 ... 5 m/s)

Speed

Measurement range up to: 0.1 ... 16 ft/s

Resolution: 0.1 ft/s

Accuracy: ±2 % of Rd (1.0 ... 16 ft/s)

Volume flow

Measurement range up to: 0.04 ... 6 m³/h

Resolution: 0.01 m³/h

Accuracy: ±2 % of Rd

General technical data

Display type: LC colour display

Display size: 1.44 Inch

Display resolution: 128 x 128

Interface: Ethernet, PoE

Materials: PVC

Measured medium: Water

Repeatability: 0.2 %

Communication: HTTP, MQTT

Menu language: English, Chinese, English (GB)

Protection class (device): IP54

Power supply: PoE

Connector type: RJ45

Weight: 842 g

Operating conditions: -10 ... 50 °C , 0 ... 99 % RH

Storage conditions: -10 ... 50 °C , 0 ... 99 % RH

Dimensions ( L x W x D ): 65 x 111 x 43 mm

Delivery Scope

1 x Ultrasonic flow meter PCE-UFM 20PVC

1 x sensor with Ethernet cable 9 m

1 x PoE network cable 2 m

1 x ultrasonic contact gel

1 x silicone seal 1 m

4 x coupling pad

1 x Allen key

1 x user manual

Note: The Android app "dial Meter Tube" can only be downloaded from our shop, under Downloads!
