Units: mm
Display type: TFT colour display
Display size: 2.4 inch
Storage medium: Internal memory
Memory capacity: 500 values
Automatic switch-off from...to: 2~30 min.
Automatic switch-off can be deactivated: Yes
Sonic speed adjustable: 1000~9999 m/s
Menu language: English (US), Chinese
Protection class (device): IP52
Weight: 230 g
Dimensions (LxWxH): 168 x 87 x 35 mm
Operating conditions: 0~40 °C, 0~90 % r.H
Storage conditions: 0~40 °C, 0~90 % r.H
Accumulator/battery: 3x 1.5 V AA battery, alkaline-manganese
Capacity: 3000 mAh
Delivery scope:

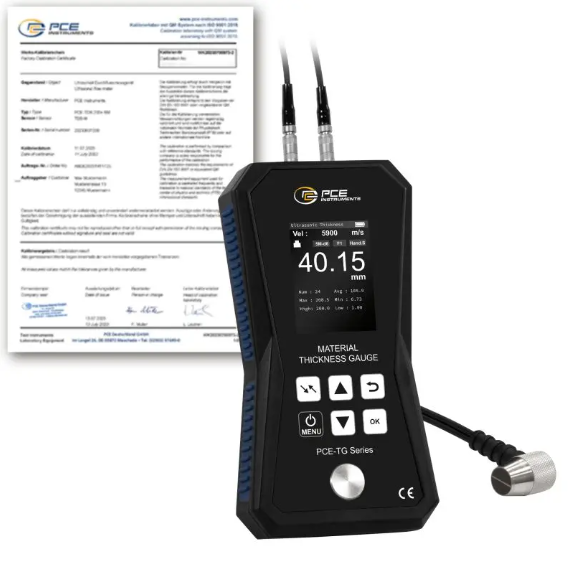

1 x PCE-TG 75A thickness meter
1 x PCE-TG 5M10d sensor
1 x coupling gel (TT-GEL)
1 x transport bag
3 x 1.5 V AA batteries
1 x quick start guide
The thickness meter can measure material thicknesses up to 225 mm. To ensure that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding sonic velocity in the thickness meter. For materials such as steel, aluminium, zinc, silver and gold, the appropriate sonic velocities are already stored in the device library. This means that the thickness meter can be used universally.
Individual maximum and minimum values can be stored with the thickness meter's limit value function. If the measured value of the test specimen is outside the limits, the thickness meter signals this visually. If required, the thickness meter can also provide acoustic signalling in addition to the visual display. The thickness meter is therefore used, for example, in quality assurance and incoming goods inspection.
The thickness meter has a data memory on which the measured values can be recorded. After a measurement process, the stored measured values can be analysed directly on the thickness meter. The stored data is displayed graphically by the thickness meter. In addition, each individual measuring point can be approached and read in the graphic of the thickness meter. To simplify the analysis of the measured values, the average, the largest and smallest measured values are displayed on the thickness meter. The thickness meter can optionally be equipped with an ISO calibration certificate.
