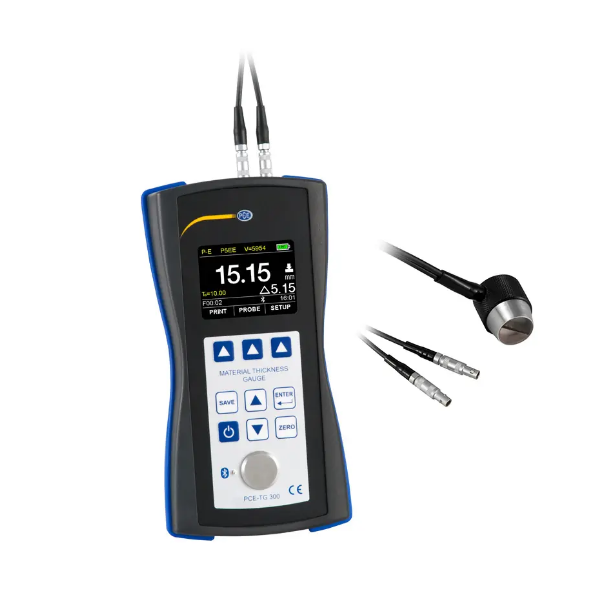

PCE TG 300-NO2 Material Thickness Meter (0.65~600 mm; 3~300 mm)

-PCE-TG-NO2 sensor:

Measuring range: 3.0 … 300.0 mm / 0.118 ... 11.81" (steel)

Minimum diameter of pipes: 30 mm / 1.18"

Frequency: 2.5 MHz

Diameter: 14 mm / 0.55"

Description: normal measurement

-PCE-TG 300-NO2 device:

Measuring range: PE: pulse-echo mode 0.65 ... 600 mm (steel); EE: echo-echo mode 2.50 ... 60 mm

Accuracy: ± 0.04 mm H [mm] (<10 mm); ± 0.4% H [mm] (> 10 mm) (H refers to the material thickness of the workpiece)

Resolution: 0.1 mm / 0.01 mm / 0.001 mm (adjustable)

Measurable materials: Metals; Plastics; Ceramics; Epoxy resin; Glass' And all homogeneous materials

Working modes: Pulse echo mode (fault and blower detection); Echo-Echo mode (hiding layer thicknesses, eg paints)

Calibration: Sound velocity calibration; Zeroing; Two-point calibration

View mode: Normal mode, Scan mode, Difference mode

Units: mm / inch

Data transfer: Print via Bluetooth / USB 2.0

Storage: Non-volatile memory with 100 data groups with 100 data sets each

Operating time: Continuous operation 100 h; Automatic stand-by mode (adjustable); Automatic switch-off mode (adjustable)

Power supply: 4 x AA battery 1.5V

Display: 320 x 240 pixels TFT LCD color display with brightness adjustment

Operating conditions: 0 ... 50°C / 32 ... 122°F, ≤ 80% RH not condensing

Storage conditions: -20 ... 70°C / -4 ... 158°F, ≤ 80% rh non-condensing

Dimensions: 185 x 97 x 40 mm / 7.3 x 3.8 x 1.6 in

Weight: 375 g / 13.2 oz

Delivery scope:

1 x Material thickness meter PCE-TG 300-NO2

1 x Sensor PCE-TG-NO2

1 x 100 ml coupling gel

1 x Transport case

4 x AA batteries

1 x User manual
