Specification
Measurement range:0.8 mm ... 225 mm / 0.03 in ... 8.86 in
Measurable materials:Ferrous and non-ferrous metals, steel, plastic, glass, gold, and other homogeneous materials (without air pockets)
Frequency:5 MHz
Resolution:0.1 mm / 3.94 mil
Calibration:3.0 mm / 0.1 in integrated steel block
Accuracy:±(0.5% + 0.1 mm) at 0.8 ... 99.9 mm
±(1% + 1 mm) at 100 ... 300 mm
Sound velocity range:1000 ... 9999 m/s (freely adjustable, depending on the material to be tested)
Sound velocity resolution:1 m/s
Display:4 digit LCD display
Surface temperature for probe:Standard -10 ... 50°C / 14 ... 122°F
Measuring head diameter:10 mm / 0.4 in
Measuring head shape:Straight
Operating temperature range:0 ... 40°C / 32 ... 104°F
Ambient humidity:20 ... 90% r.H.
Battery status:Low power indicator
Power supply:2 x 1.5V AA batteries
Battery life:250 h
Auto shutdown:For battery conservation (after about 3 minutes without operation)
Dimensions:127 x 67 x 30 mm / 5 x 2.64 x 1.18 in (H x W x D)
Weight:270 g / < 1 lb incl. batteries
Delivery contents

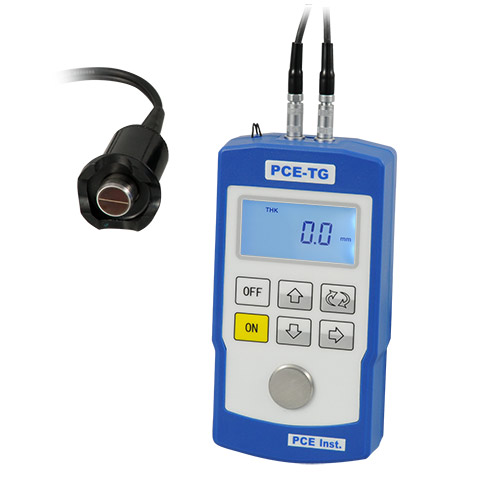

1 x PCE-TG 100 Material Thickness Meter
1 x Contact transducer with 1 m (3.3 ft) cable
2 x Batteries
1 x Bottle of contact gel
1 x Carrying strap
1 x Carrying case
1 x User manual
