Measuring ranges: -32 ... +32 m/s
Resolution: 0.0001 m/s
Accuracy: ±1 % of the measured value
Linearity: 0.5 %
Repeatability: 0.2 %
Response time: 0 ... 999 seconds, freely configurable
Pipe size: 15 ... 108 mm
Liquid types: Virtually all homogeneous liquids, including sanitary, corrosive and abrasive liquids
Head: Type S1
Cable length: approx. 5 m
Display: 4 x 16 LCD, 7 digits for net flow, positive and negative flow
Power: 3 x AAA Ni-H rechargeable batteries, Approx. 10 hours continuous use at full charge
Charger: 100 .. 240 V/AC
Interface: RS-232C
Memory: Stores up to 2,000 values
Housing material: ABS plastic
Dimensions
- Device: 100 x 66 x 20 mm
- Transducers: Each 60 x 45 x 45 mm
Temperature: 0 ... 70 ºC
Weight: 514 g with batteries
Include:

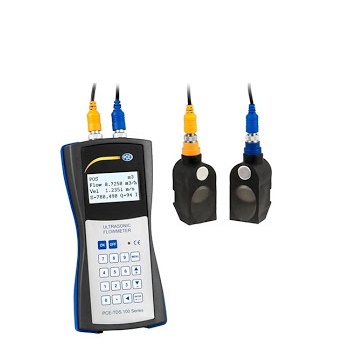

1 x Ultrasonic flow tester PCE-TDS 100HS
2 x Sensor TDS-S1 (PCE-TDS 100HS)
2 x 5 m / 16.4 ft transducer connection cables
2 x Velcro cable ties
1 x Power adapter
1 x Ultrasound contact gel
1 x PCE tape measure
1 x Plastic case
1 x User manual
Accesrories:
1. Sensor Cable for PCE-TDS 100 Series (5-meter)
2. Transducers and Bracket (Order no : TDS-HS)
TDS-HS bracket and sliding transducers S1 with integrated magnets for attaching to ferrous pipes
- For pipe and tube diameters of DN 15 … 100, 20 … 108 mm / approx. 3/4 ... 4"
- Dimensions 200 x 25 x 25 mm
3. Software for PCE-TDS 100H / PCE-TDS 100HS
4. Replacement transducers for PCE-TDS 100HS Order no : TDS-S1 (x2)
5. Ultrasonic contact gel 120mL Order no : TT-GEL
