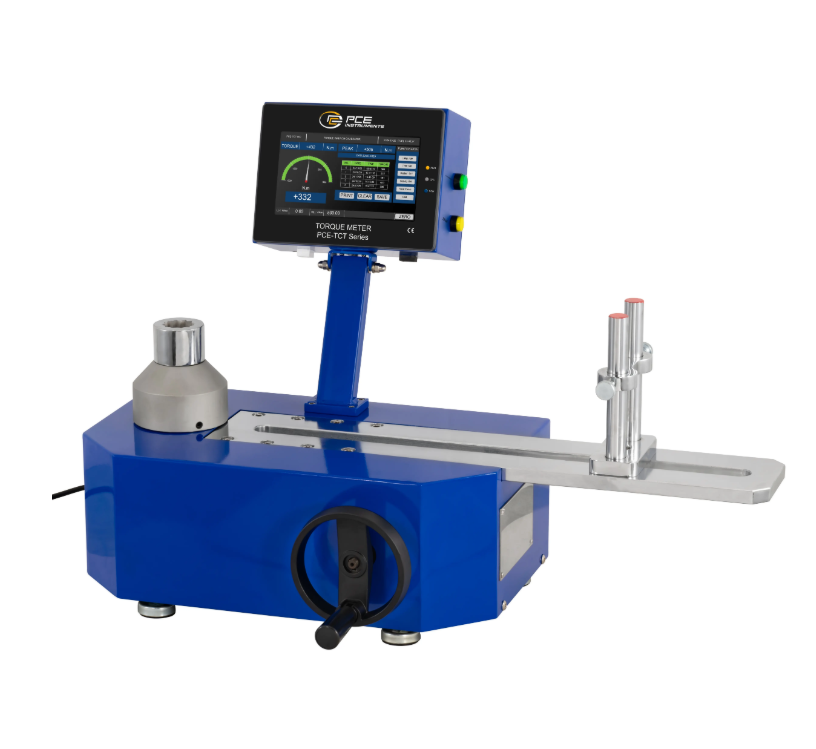

PCE PCE-TCT 500 Material tester (500 Nm; 5105.2 kgfcm; 4431.1 lbf-in)

Torque

Measurement range up to: 0.01 ... 500Nm

Resolution: 0.01 Nm

Accuracy: ±0.01 % of Rd

Torque

Measurement range up to: 0.1 ... 5105.2 kgfcm

Resolution: 0.1 kgfcm

Accuracy: ±0.01 % of Rd

Torque

Measurement range up to: 0.1 ... 4432.2 lbf-in

Resolution: 0.1 lbf-in

Accuracy: ±0.01 % of Rd

General technical data

Storage medium: Internal memory

Storage capacity: 999 Data records

Interface: USB, RJ45

Alarm: optical, Acoustic

Alarm modes: lower limit, upper limit

Dimensions: Length range: 130... 750 mm

Angle of rotation: 0 ... 60°

Max. lifting height: 130mm

Menu language: English (GB), English, Chinese

Protection class (device): IP20

Power supply: 220 V AC | 50 Hz

Connector type: Schuko plug

Operating conditions: -10 ... 40 °C , 0 ... 90 % RH

Storage conditions: -10 ... 40 °C , 0 ... 90 % RH

Dimensions ( L x W x H ): 730 x 400 x 500 mm

Weight: 47.8 kg

Delivery Scope

1 x Material Tester PCE-TCT 500

1 x multi-tooth adaptor

1 x 1/4" adaptor

1 x 3/8" adaptor

1 x 1/2" adaptor

1 x open-end wrench 17/19

1 x Allen key

1 x IEC cable
