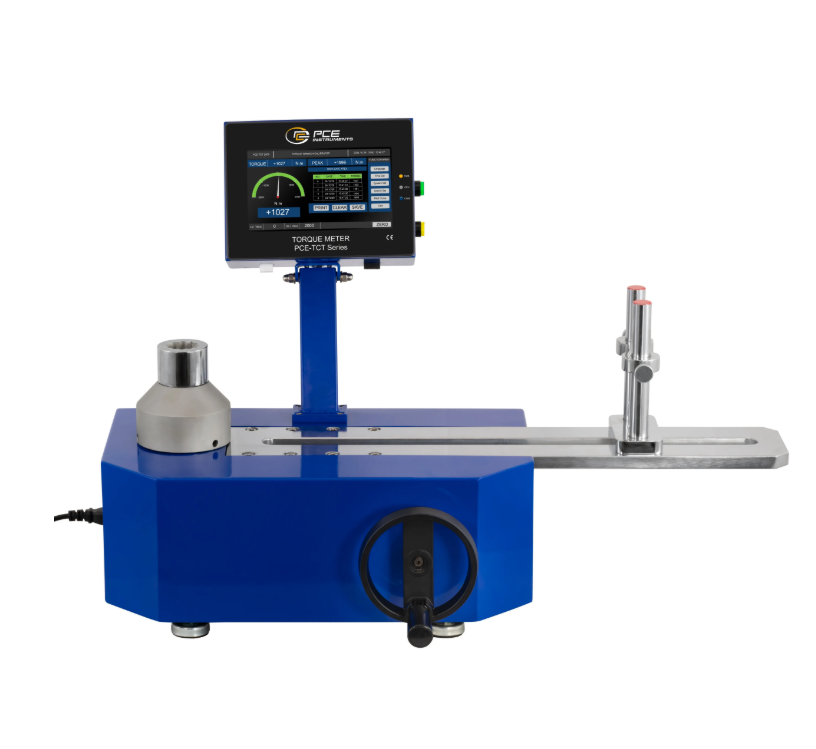

PCE PCE-TCT 2000 Material tester (2000 Nm; 20420 kgfcm; 17724 lbf-in)

Torque

Measurement range up to: 0.1 ... 2000 Nm

Resolution: 0.1 Nm

Accuracy: ±0.01 % of Rd

Torque

Measurement range up to: 1 ... 20420 kgfcm

Resolution: 0.1 kgfcm

Accuracy: ±0.01 % of Rd

Torque

Measurement range up to: 1 ... 17724 lbf-in

Resolution: 0.1 lbf-in

Accuracy: ±0.01 % of Rd

General technical data

Storage medium: Internal memory

Storage capacity: 999 Data records

Interface: USB, RJ45

Alarm: optical, Acoustic

Alarm modes: lower limit, upper limit

Dimensions: Length range: 250 ... 1800 mm

Angle of rotation: 0 ... 360 °

Max. lifting height: 150 mm

Menu language: English (GB), English, Chinese

Protection class (device): IP20

Power supply: 220 V AC | 50 Hz

Connector type: Schuko plug

Operating conditions: -10 ... 40 °C , 0 ... 90 % RH

Storage conditions: -10 ... 40 °C , 0 ... 90 % RH

Dimensions ( L x W x H ): 125 cm x 50 cm x 80 cm

Weight: 330 kg

Delivery Scope

1 x Material Tester PCE-TCT 2000

1 x multi-tooth adaptor

1 x 1/4" adaptor

1 x 3/8" adaptor

1 x 1/2" adaptor

1 x open-end wrench 17/19

1 x Allen key

1 x IEC cable

Datasheet
