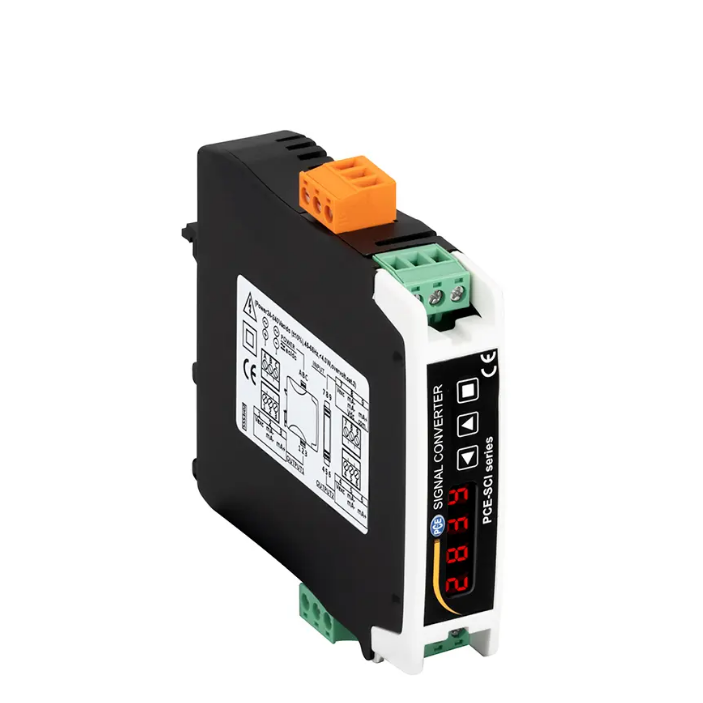

PCE PCE-SCI-D Current Measuring Transducer (+4-mA~+20-mA; 0VDC~+10VDC)

- Process stream:

Measuring range: +4-mA ... +20-mA

Accuracy: 0.3% of Mb.

Overload: 25mA

Signal type: active passive

Impedance: <2 Vdc voltage drop across terminals

Step response: <300 ms (0 ... 99% signal)

- Process voltage:

Measuring range: 0VDC...+10VDC

Accuracy: 0.3% of Mb.

Overload: 25VDC

Signal type: active passive

Iumpedance: greater than 1 MΩ

Step response: <300 ms (0 ... 99% signal)

- General technical data:

Display type: 7 segments, 2 digits

Security standard: CAT II / 300V

Protection class (device): IP30

Power supply: 24 ... 240V DC ±10%, 45 ... 65 Hz, isolated

Weight: 126g / 0.3 lbs

Device weight with scope of delivery: 130g / 0.3 lbs

Device weight including scope of delivery and outer packaging: 153g / 0.3 lbs

Dimensions (L x W x H): 110 x 22 x 118 mm / 4.3 x 0.9 x 4.6 in

Operating conditions: 0 ... 50°C / 32 ... 122°F, 95% RH

Storage conditions: -20 ... 70°C / -4 ... 158°F, 95% RH

Languages of the instructions: English

- Delivery scope:

1 x Configurable transmitter PCE-SCI-D

1 x User Manual
