Measuring ranges: Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc
Ra, Rq, Rc: 0.005 μm ... 16 μm
Rz, Rt, Rp, Rv: 0.02 μm ... 200 μm
Rsm: 5 μm ... 1000 μm
Rsk: -1 ... 1
Radius probe tip: 5 µm
Material probe tip: Diamond, 90° angled
Max. recommended force for static measurement: 4 mN (0.4 gf)
Radius longitudinal guide bar: 45 mm / 1.77"
Standards: ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
Maximum driving distance: 15 mm / 0.59"
Measuring principle: Inductive
Cut-off wavelength: 0.25 mm / 0.8 mm / 2.5 mm / 0.009" / 0.03" / 0.098"
Testing speed: 0.135 mm/s at cut-off wavelength: 0.25 mm
0.5 mm/s at cut-off wavelength: 0.8 mm
1 mm/s at cut-off wavelength: 2.5 mm
Reversing speed: 1 mm/s
Measuring accuracy: < ± 10%
Repeatability: < 6%
Display: OLED
Interface: Micro USB, Bluetooth
Power supply: Rechargeable Li-ion battery
Delivery Scope:

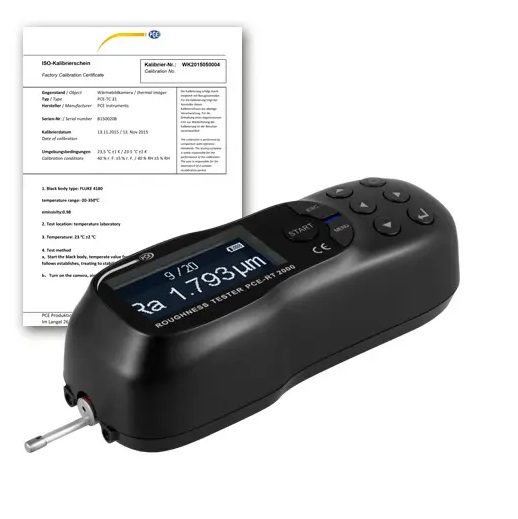

1 x Material Surface Roughness Tester PCE-RT 2000BT-ICA
1 x Microprobe
1 x Protective cap for buttons
1 x Clamping device
1 x Software
1 x Calibration plate
1 x Roughness standard
1 x USB cable
1 x Charging adapter
1 x Transport case
1 x User manual
1 x ISO Calibration Certificate
