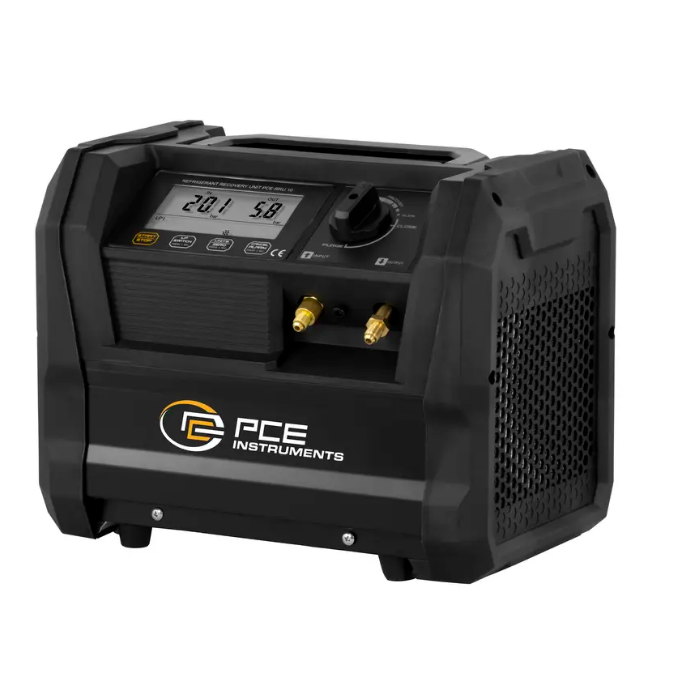

PCE PCE-RRU 10 efrigerant Recovery Device

- Pressure:

Measuring Range: 0 bar ... 38.5 bar

Resolution: 0.1 bar

- Liquid Extraction Rate:

R134a: 2.6 kg/min

R22: 2.9 kg/min

R410A: 3.9 kg/min

- Push/Pull Extraction Rate:

R134a: 7.5 kg/min

R22: 8.5 kg/min

R410A: 9.5 kg/min

- General Technical Data:

Units: bar, MPa, kPa, psi, kgf

Connection Type: 1/4" SAE

Display Type: LCD with backlight

Refrigerants: R401C, R22, R401B, R134a, R407D, R509, R407B, R410A, R507, R407C, R408A, R12, R32, R409A, R402A, R500, R404A, R402B, R401A, R406A, R1234YF, R502, R407A

Motor Power: 1 HP

Max. Current Consumption: 6 A

Compressor: Oil-free, Air-cooled

Menu Language: English

Protection Class: IP20

Power Supply: Schuko Plug (110 V - 240 V AC | 50/60 Hz)

Weight: 10.75 kg

Device Weight with Accessories: 11.45 kg

Device Weight with Accessories and Packaging: 12.75 kg

Dimensions (L x W x H): 38 x 25 x 30 mm

Operating Conditions: 0 ... +40 °C, +10 ... +90 % r.F.

Storage Conditions: 0 ... +40 °C, +10 ... +90 % r.F.

- Delivery Scope:

1 x Refrigerant Testing Device PCE-RRU 10

1 x Carrying Strap

1 x Refrigerant Filter

1 x OFP Cable for DOT Bottles (specific countries)

1 x Filter Connection Hose

1 x Power Cable

1 x User Manual
