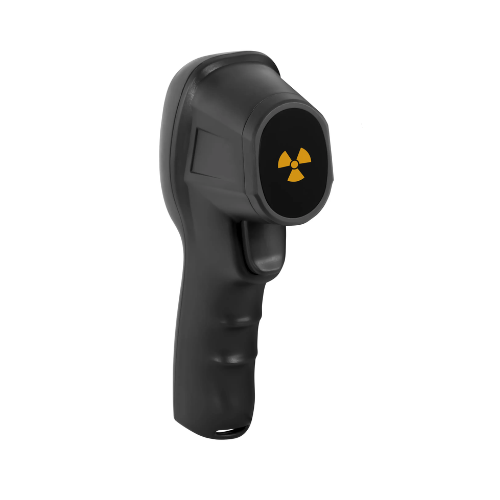

PCE RAM 7 Geiger counter (20 ... 3000 keV)

Specification

Radiation

Measurement range up to: 0 ... 9999 µSv/h

Resolution: 0,.01 µSv/h

Accuracy: ≤3 % of Rd

Radiation

Measurement range up to: 0 ... 9999 cps

Resolution: 1 cps

Accuracy: ≤3 % of Rd

Radiation

Measurement range up to: 0 ... 9999 cpm

Resolution: 1 cpm

Accuracy: ≤3 % of Rd

General technical data

Measuring functions: Gamma rays, X-rays, Beta radiation

Energy range: 20 ... 3000 keV

Display type: TFT colour display

Display size: 1.8 Inch

Interface: Micro-USB

Sensor: Geiger-Mueller counter tube

Alarm: Acoustic

Sensitivity: 80 cpm/µsV (Co-60)

Menu language: English

Protection class (device): IP54

Power supply: 5 V

Weight: 170 g

Operating conditions: 0 ... 50 °C , 10 ... 90 % RH

Storage conditions: -10 ... 60 °C , 10 ... 90 % RH

Capacity: 1100 mAh

Dimensions ( L x W x H ): 180 x 55 x 80 mm

Delivery Scope

1 x PCE-RAM 7 Geiger Counter

1 x micro USB cable

1 x user manual

1 x service bag

Description

Geiger Counter with Geiger-Müller counter tube / gamma, beta and X-rays / time and date display / units µSv/h, CPM, CPS / dark mode / one-hand operation

The Geiger Counter with a measurement range of 0 to 9999 μSv/h and a resolution of 0.01 μSv/h is a powerful and precise instrument for detecting beta (β), gamma (γ) and X-ray radiation. Equipped with an energy-compensated Geiger-Müller tube, it offers a high sensitivity of 80 CPM/μSv (for Co-60) and a flexible display in μSv/h, CPM and CPS.

Thanks to its compact and handy design, the Geiger Counter is easy to use and is ideal for measuring small changes in radiation values. Our Geiger Counter is equipped with a display that shows the date and time and offers the option of switching the display from white to black to optimise readability under different lighting conditions. An adjustable audible alarm provides additional safety by making you aware of increased radiation levels. Battery operation allows flexible use in different areas. The charging time of the device is only approx. 1-2 hours.

The Geiger Counter is used, for example, in environmental protection by security forces, in the medical sector and also by private individuals to monitor their living environment.

Highlights

- gamma, beta and X-rays

- display in µSv/h, CPM, CPS

- sensitivity of 80 CPM / μSV/(Co-60)

- adjustable audible alarm

- sensor: Geiger-Müller counter tube

- display of time and date

- battery operation

- ergonomic handle
