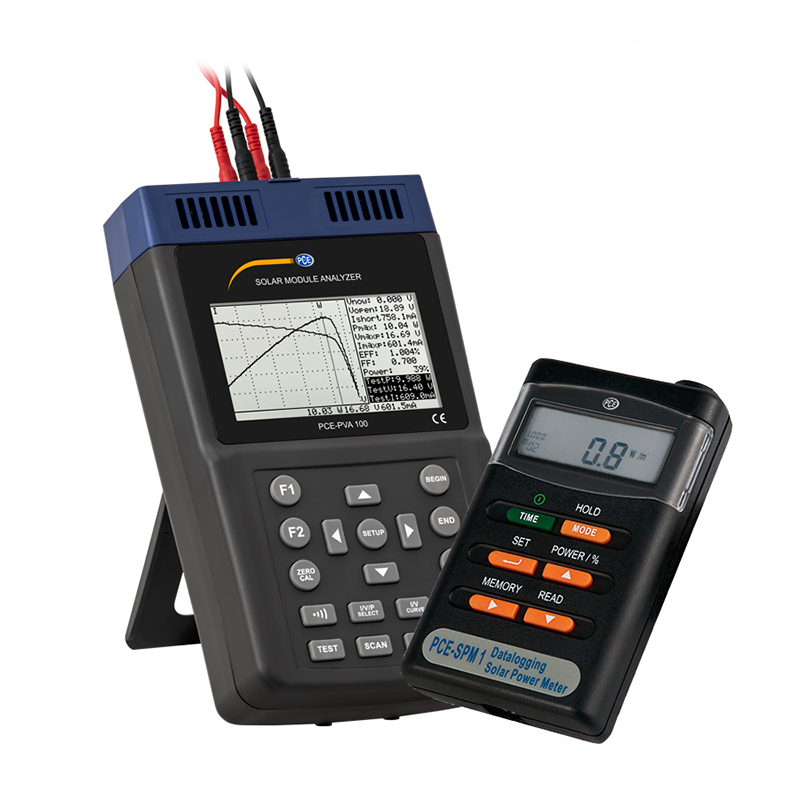

PCE PVA 100-SPM 1-KIT Photovoltaic Meter Kit (0~60V; 0,01~12A; 0~ 2000 W/m²)

-Photovoltaic meter PCE-PVA 100

+ DC Voltage:

Measuring range: 0 … 10 V

Resolution: 0.001 V

Accuracy: ±1 % ±(1 % of Vopen ±0.1 V)

Measuring range: 10 … 60 V

Resolution: 0.1 V

Accuracy: ±1 % ±(1 % of Vopen ±0.1 V)

Vopen: open voltage measurement on a solar module

+ Direct Current:

Measuring range: 0.01 … 10 A

Resolution: 1 mA

Accuracy: ±1 % ±(1 % of Ishort ±9 mA)

Measuring range: 10 … 12 A

Resolution: 10 mA

Accuracy: ±1 % ±(1 % of Ishort ±0.09 A)

Ishort: short-circuit current of a solar cell

+ Further specifications:

Adjustable photovoltaic area: 0.001 … 9999 m²

Adjustable irradiance: 10 … 1000 W/m²

Display: 4.8“ LC display

Fuse: F250 V, 12 A

Data memory: 100 measurements

Storage rate: 0 … 99 minutes

Battery life: ca. 400 linear measurements from 60 … 0 V and 0 … 12 A

Power supply battery: 11.1 V, 3400 mAh lithium battery

Power supply mains adapter

Primary: 100 … 240 V AC 50/60 Hz

Secondary: 15 V DC / 3A

Degree of pollution: 2

Temperature coefficient: 0.1 % of the measuring range /°C / °F at temperatures <18 °C / 64 °F and >28 °C / 82 °F

Operating conditions: -20 … 60 °C / -4 ... 140 °F <75 % RH, non-condensing

Dimensions: 257 x 155 x 57 mm / 10.1 x 6.1 x 2.2 in

Weight: 1160 g / 2.6 lbs

-Solar measuring device PCE-SPM 1:

Measuring range: 0 ... 2000 W/m²

Resolution: 1 W/m²

Accuracy: ±10 W/m² or ±5 % (the higher value applies)

Spectral range: 400 ... 1100 nm

Data memory: 32,000 measured values

Measuring rate: adjustable

Data transmission: serial RS232 interface

Display: LCD

Ambient temperature range: 0 ... +50 °C / 32 ... 122 °F

Max. humidity: <80 % RH

Power supply: 4 x 1.5 V AAA Li-ion battery (for ca. 16 days of continuous use)

Dimensions: 111 x 64 x 34 mm / 4.37 x 2.52 x 1.34"

Weight: 165 g / 5.8 oz

Delivery Scope:

1 x Photovoltaic meter PCE-PVA 100

1 x Solar measuring device PCE-SPM 1

1 x Optical USB cable

1 x Battery

1 x Software CD

2 x Kelvin clamps

2 x Safety measuring lines (100 mm)

1 x Mains power adapter

1 x Internal sensor

1 x Internal measured value memory

1 x RS-232 PC cable

1 x Software

4 x Battery

1 x Device bag

1 x Instruction manual
