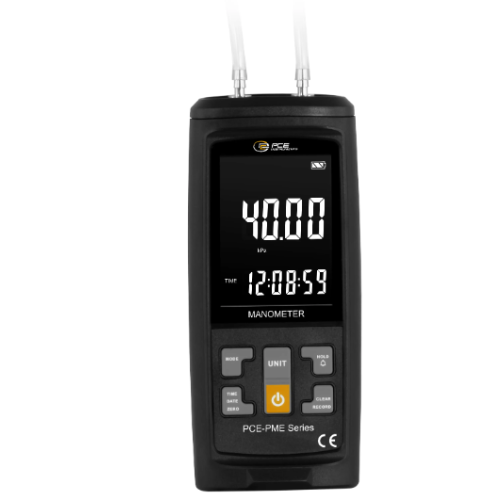

PCE PME 40 Pressure Gauge (-40 ... +40 kPa)

Specification

Differential pressure

Measurement range up to: -40 ... +40 kPa

Resolution: 0.01 kPa

Accuracy: ±1 % FS

Differential pressure

Measurement range up to: -400 ... +400 mbar

Resolution: 0.1 mbar

Accuracy: ±1 % FS

General technical data

Measuring functions: MIN, MAX, HOLD, AVG

Units: inHg, Pa, bar, mmHg, mbar, hPa, inH₂O, kPa, psi, kg/cm², psi, Ozf/in², ftH₂O

Display type: LC colour display

Storage medium: Internal memory

Storage capacity: 15996 Measurements

Storage interval from: 1 s

Storage interval to: 9999 s

Interface: USB-C

Operating time: 13 h

Automatic power-off from...to: 1 ... 99 min.

Automatic power-off can be deactivated: Yes

Alarm: Acoustic

Alarm modes: Above, below

Overpressure: 3 kPa

Menu language: English

Protection class (device): IP20

Power supply: 5 V

Weight: 180 g

Operating conditions: -10 ... 60 °C , 0 ... 95 % RH

Storage conditions: -10 ... 60 °C , 0 ... 95 % RH

Capacity: 1000 mAh

Dimensions ( W x H x D ): 63 x 162 x 32 m

Delivery Scope

1 x Pressure Gauge PCE-PME 40

2 x hose approx. 25 cm

1 x USB-A - USB-C cable (mains adapter not included)

1 x carrying case

1 x PC software (in the download area)

1 x user manual

Datasheet:
