PCE PME 2 Pressure Gauge (-2.5 ... +2.5 kPa)

Specification:

Differential pressure:

Measurement range up to: -2.5 ... +2.5 kPa

Resolution: 0.01 kPa

Accuracy: ±1 % FS

Differential pressure:

Measurement range up to: -25 ... +25 mbar

Resolution: 0.1 mbar

Accuracy: ±1 % FS

General technical data:

Measuring functions: MIN, MAX, HOLD, AVG

Units: inHg, Pa, bar, mmHg, mbar, hPa, inH₂O, kPa, psi, kg/cm², psi, Ozf/in², ftH₂O

Display type: LC colour display

Storage medium: Internal memory

Storage capacity: 15996 Measurements

Storage interval from: 1 s

Storage interval to: 9999 s

Interface: USB-C

Operating time: 13 h

Automatic power-off from...to: 1 ... 99 min.

Automatic power-off can be deactivated: Yes

Alarm: Acoustic

Alarm modes: Above, below

Overpressure: 3 kPa

Menu language: English

Protection class (device): IP20

Power supply: 5 V

Weight: 180 g

Operating conditions: -10 ... 60 °C, 0 ... 95 % RH

Storage conditions: -10 ... 60 °C, 0 ... 95 % RH

Capacity: 1000 mAh

Dimensions ( W x H x D ): 63 x 162 x 32 mm

Delivery Scope:

1 x Pressure Gauge PCE-PME 2

2 x hose approx. 25 cm

1 x USB-A - USB-C cable (mains adapter not included)

1 x carrying case

1 x PC software (in the download area)

1 x user manual

Pressure Gauge up to ±2.5 kPa / 13 selectable units / data logging and USB-C interface / PC software / export to xls file

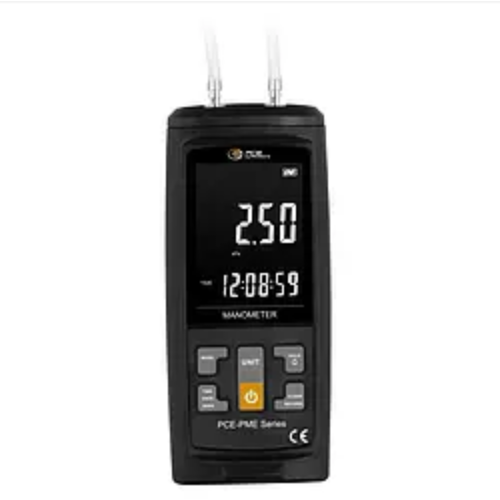

The digital Pressure Gauge is an accurate and compact meter for differential pressure measurement in a wide range of applications, such as measuring filter resistances, pressure in furnaces, orifices, gas-air ratio equalisation, combustion processes, air conditioning systems, ventilation systems, etc. The Pressure Gauge is suitable for measuring non-aggressive and non-explosive gases.

The Pressure Gauge offers a variety of measuring functions such as maximum, minimum and average value calculation and a HOLD function. It offers an integrated data logging function with adjustable logging interval and real-time communication with a PC as well as export of the logged data as an xls file. The rechargeable battery enables an operating time of approx. 13 hours. The Pressure Gauge has an audible alarm for monitoring during use. With 13 selectable pressure units, it can be flexibly adapted to individual requirements.
