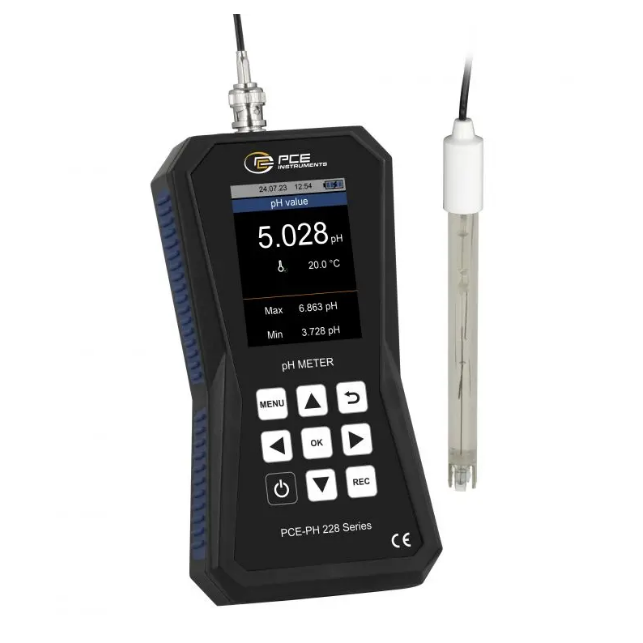

PCE PCE-PH 228 pH Meter (-2 pH!~+20 pH)

- pH:

Measurement Range: -2 pH ... +20 pH

Resolution: 0.001 pH

Accuracy: ± 0.002 pH + 2 digits

- Electrode:

Designation: PE-03

Measurement Range: +1 pH ... +13 pH

Temperature Range: 5 ... 60 °C

Application: Aqueous non-corrosive media

Reference Electrolyte: Ag/AgCl

Shaft Material: Epoxy resin

Shaft Length: 160 mm

Shaft Diameter: 12 mm

Cable Length: 1 m

- Redox:

Measurement Range: -2000 mV ... +2000 mV

Resolution: 1 mV

Accuracy: ± 2 mV

- Temperature Sensor:

Minimum Temperature: -20 °C

Maximum Temperature:100 °C

Resolution: 0.1 °C

Accuracy: ± 0.5 °C (@ 20 °C)

- General Technical Data:

Storage Medium: Internal memory

Storage Interval from: 1 s

Storage Interval to: 12 h

Storage Capacity: 32 GB

Storage Capacity Additional Information: 100 records with a maximum of 100,000 data points per record

Interface: USB-C

Menu Language: German, English, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Danish, Japanese

Protection Class (Device): IP52

Power Supply: 5 V DC, 500 mA

Weight: 252 g

Dimensions (L x W x H): 178 x 85 x 32 mm / 7 x 3,3 x 1,2 in

Operating Conditions: -20 ... 65 °C , 10 ... 95 % r.H

Storage Conditions: -20 ... 65 °C , 10 ... 95 % r.H

Languages of the Manual: German, English

- Batteries and Accumulators:

Type: Lithium polymer battery

Lithium Info: Lithium in the product (built-in or included)

Capacity: 2500 mAh

Voltage: 3.7 V

SystemSecondary: Rechargeable battery

Quantity: 11

- Delivery scope:

1 x pH Meter PCE-PH 228

1 x pH Electrode PE-03

1 x Temperature Sensor

1 x Service Pouch

1 x USB-C Cable

1 x Quick Start Guide
