Specification
Pressure measuring range: -100 ... 2000 kPa relative
Resolution: 0.01 kPa, 0.1 kPa
Accuracy: <± 0.5% of the measuring range
Nominal pressure: 2000 kPa
Overpressure: 2000 kPa
Burst pressure: 3000 kPa
Media: Liquids; Air; Non-explosive gasses
Measuring rate: 10 Hz
Measurement units (adjustable): Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
Principle: Relative pressure
Pressure connections: 5 mm (0.2 in) nipple for quick connection
Max, min and hold functions: Yes
Data logger: 1024 memory slots
1 s ... 255 h recording time per memory location
1 s ... 24 h recording interval
Medium: For air and non-explosive gases
Zero correction: Yes, with a zero key
Averaging: Yes, between 0.1 ... 9.9 s
Display: Graphic LCD with backlight
Ingress protection (IP) rating: IP41
Power supply: 2 x 1.2V NiMh batteries
5V / 500-mA USB power adapter
Current consumption: 50-mA (with backlight); 10-mA (without backlight)
Operating temperature: 0 ... 50°C / 32 ... 122°F
Storage temperature: 10 ... 55°C / 50 ... 131°F
Dimensions: 145 x 85 x 35 mm / 5.71 x 3.35 x 1.38 in
Weight: Approx. 285 g / < 1 lb
Delivery contents

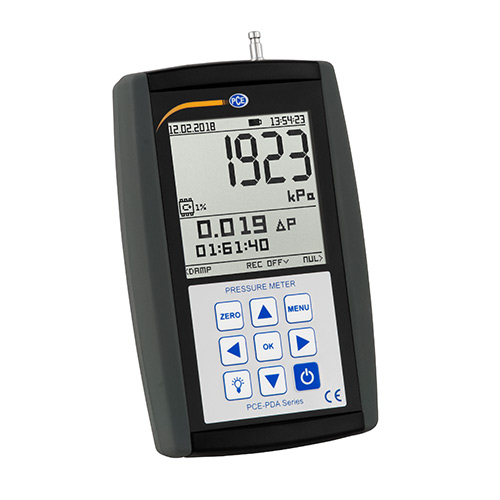

1 x HVAC meter PCE-PDA 1000L
2 x 1.2V NiMh batteries
1 x USB power adapter
1 x Micro USB cable
1 x User manual
