Direct access to our certified experts
Interface: RS 485 Modbus RTU Master
Number of slave devices / registers: 10
Operating conditions: 0 ... 50°C / 32 ... 122°F, max 80% RH
Storage conditions: -25 ... 70°C / -13 ... 158°F, max. 80% rh
Degree of protection: Front: IP65; Rear: IP20
Power supply: 90 ... 250V AC
Input: Max. 7 VA
Connections: Screw
Voltage supply: max. 2.5 mm²
Signal input: max. 1.5 mm²
Panel cut: 90.5 x 90.5 mm / 3.6 x 3.6 in
Dimensions: 96 x 96 x 81 mm / 3.8 x 3.8 x 3.2 in
Weight: About 400 g / < 1 lb
Delivery Scope:

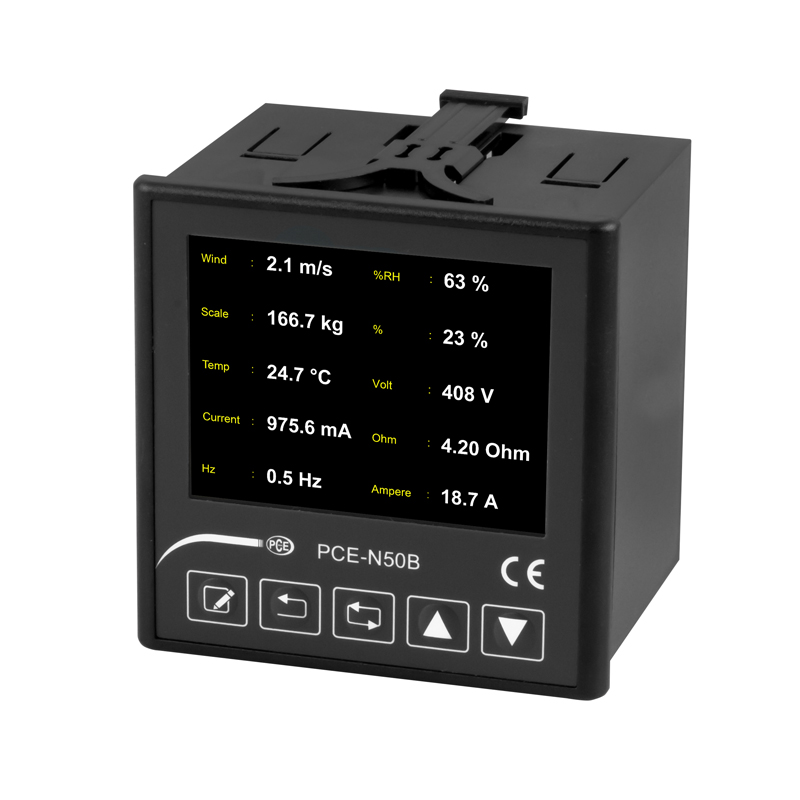

1 x Panel Meter PCE-N50B
2 x Mounting clamps
1 x User manual
