- Measuring function: DC magnetic field precision sensor:
Measuring range: ± 30µT; ± 300 µT; ± 300 mG; ± 3000 mG
Resolution: 0.01 µT; 0,1μT; 0.1 mG; 1 mG
Accuracy:
± (2% of MB + 2 mG)
@ ± 100µT / 1000 G
- Measuring function: DC magnetic field standard sensor:
Measuring range: ± 300 mT; ± 3000 mT; ± 3000 G.; ± 30000 G.
Resolution: 0.01 mT; 0.1 mT; 0.1 g; 1 G
Accuracy: ± (5% of VAT + 10 Dgt)
- Measuring function AC magnetic field standard sensor 50/60 Hz:
Measuring range: 30μT; 300 µT; 300 mG; 3000 mG
Resolution: 0.01 µT; 0,1μT; 0.1 mG; 1 mG
Accuracy:
± (2% of MB + 2 mG)
@ 0 ... 100µT / 1000 G
- Measuring function AC magnetic field precision sensor 50/60 Hz:
Measuring range: 30μT; 300 µT; 300 mG; 3000 mG
Resolution: 0.01 µT; 0,1μT; 0.1 mG; 1 mG
Accuracy:
± (2% of MB + 2 mG)
@ 0 ... 100µT / 1000 G
- Measuring function AC magnetic field standard sensor 50/60 Hz:
Measuring range: 150 mT; 1500 mT; 1500 g; 15000 G.
Resolution: 0.01 mT; 0.1 mT; 0.1 g; 1 G
Accuracy: ± (5% of VAT + 10 Dgt)
- General technical data:
Measuring rate: 1 second
Measuring direction: Uniaxially
Display: LCD display
Features: Data hold / max. Min. Memory
Storage: Data logger single value memory
Data logger storage rate: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 s
Interface: Serial
Environmental conditions: 0 ... 50°C / 32 ... 122°F, max. 85% RH
Power supply: 6 x 1.5V AA batteries; Optional 9V power supply
Current consumption: Approx. 138-mA
Dimension:
Device: 292 x 236 x 98 mm / 11.5 x 9.3 x 3.9 in
Precision sensor: 195 x 25 x 19 mm / 7.7 x 1 x 0.7 in
Standard sensor: 177 x 29 x 17 mm / 7 x 1.1 x 0.7 in
Weight : 275 g / < 1 lb

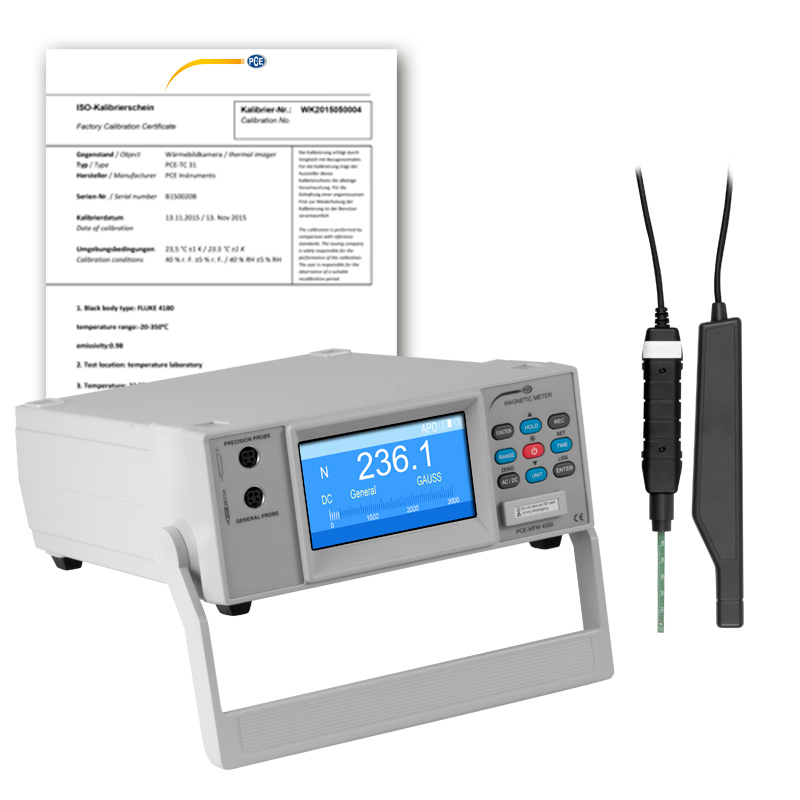

Delivery Scope:
1 x Gaussmeter PCE-MFM 4000
1 x Standard Sensor Range: 0-3000 milli-Tesla (0-30,000 Gauss)
1 x Precision Sensor Range: 0-300 micro-Tesla (0-3000 milli-Gauss)
1 x SD memory card
6 x 1.5V AA batteries
1 x Instruction manual
1 x ISO calibration certificate
