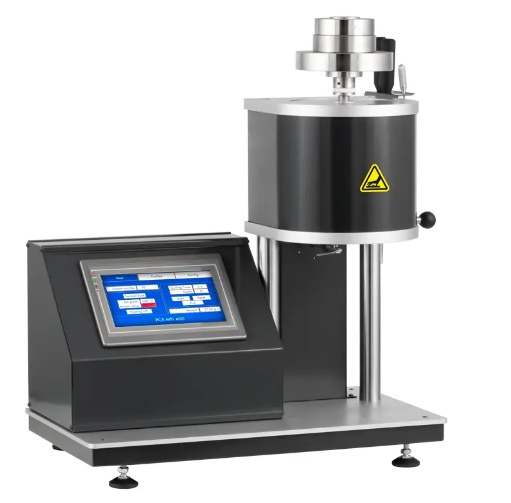

PCE MFI 400 Melt Flow Tester (0,1~400g/10 mins; 120~400°C)

Measuring range

Melting rate: 0.1 ... 400.0 g / 10 min

Temperature: 120 ... 400°C / 248 ... 752°F

Measuring accuracy temperature: ± 0.2°C / 0.36°F

Resolution: 0.1°C / 0.18°F

Test load: 0.325 ... 21.6 kg

Test piston Ø: 9.48 mm

Capillary Ø: 2,095 mm

Standards: ISO1133-1997, ASTM 1238-04C, GB / T3682-2000

Display

Type: 7" LCD touch display

Resolution: 800 x 480 pixels

Color depth: 16,000 colors

Dimensions (without test load): 500 x 320 x 500 mm / 19.7 x 12.6 x 19.7 in

Weight (without test load): About 15 kg / 33 lbs

Power supply: 90 ... 264V AC

Power consumption (at full load): About 0.6 kVA

***220 VAC only: 110:220 (5000 Watt) Transformer included for US customers

Delivery Scope:

1 x Material flow tester PCE-MFI 400

1 x Weight set 0.325 ... 21.6 kg

1 x Power cable

1 x Funnel

1 x Cleaning rod

1 x User manual
