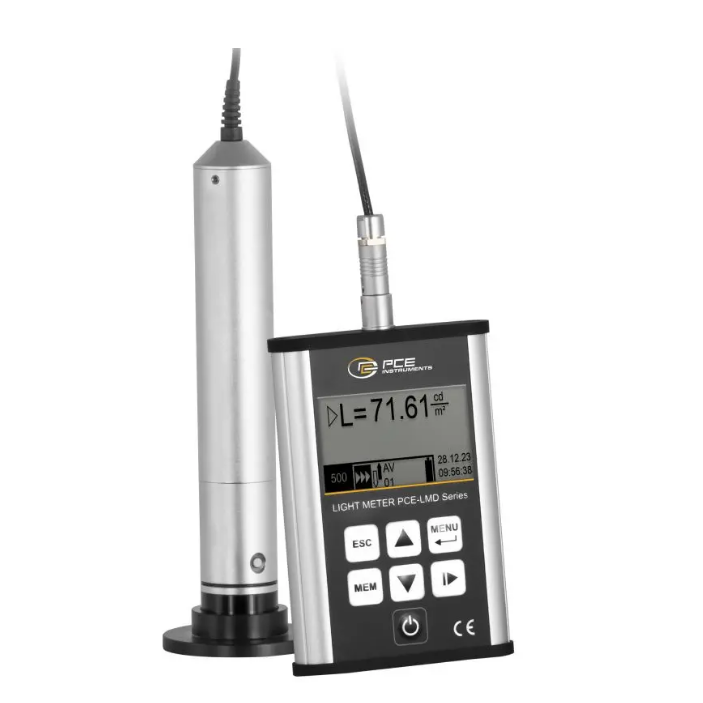

PCE PCE-LMD 100 Light Meter (0~+50000 cd/m2; 0.01~1 cd/m2)

- Luminance:

Measuring range: 0 cd/m² ... +500 cd/m²

Resolution: 0.01 cd/m²

Accuracy: Total error at +10 ... +40°C: 2.5%

Total error at -10 ... +50°C: 3%

Class A (CIE, DIN 5032-7)

- Luminance:

Measuring range: +500 cd/m² ... +50000 cd/m²

Resolution: 1 cd/m²

Accuracy: Total error at +10 ... +40°C: 2.5%

Total error at -10 ... +50°C: 3%

Class A (CIE, DIN 5032-7)

- General technical data :

Display type: NULL

Display refresh rate: 1 x per second

Storage medium: Micro SD card

Storage interval of: 1 s

Memory interval up to: 60 s

Memory capacity: 8 GB

Interface: Micro-USB

Operating time: 23 h

Measurement rate: 1 Hz

Measuring field: 10 mm

Measuring angle: 1 °

Menu language: English, Polish

Protection class (device): IP20

Power supply: 5V DC / max. 2.1A

Weight: 172 g

Device weight with scope of delivery: 1.4 kg

Device weight with scope of delivery and outer packaging: 1.8 kg

Dimensions (L x W x H): 118 x 74 x 21 mm

Other dimensions: Probe dimensions: Ø 25 x 160 mm

Operating conditions: -10 ... 50 °C , 90 % r.h.

Storage conditions: -10 ... 50 °C , 90 % r.h.

Languages of the instructions: English

- Delivery scope:

1 x PCE-LMD 100 light meter

1 x measuring probe

1 x micro USB charging cable

1 x 8 GB micro SD memory card incl. adapter

1 x attachment cap for the probe

1 x USB power supply

1 x operating instructions

1 x transport case
