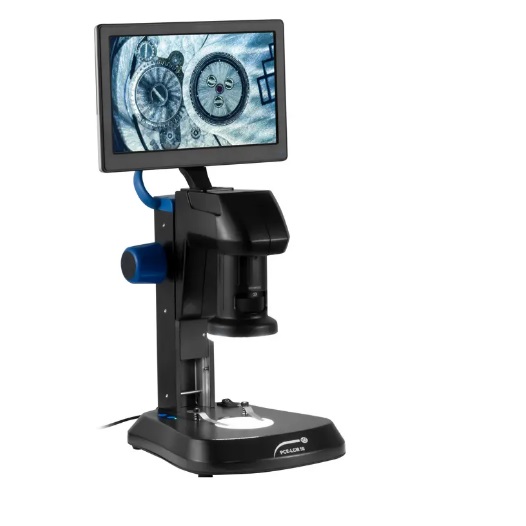

PCE LCM 50 Digital Microscope (8.1~32.4x; 1~10x)

Optical zoom: 8.1 ... 32.4x

Optical lens: 1 ... 4x

Barlow: 0.3 times

Digital zoom: 1 ... 10x

Max. object height: 4 cm

Fixed working distance: 90.5 mm

Image sensor: 1/3", 3MP

White balance: Automatically or by pressing a button

Display resolution: 1024 x 600 pixels

Frame rate: 30 fps

Pixel size: 2.75 x 2.75 μm

Interface: USB 2.0

Power supply power supply:

Primary: 100 ... 240V

Secondary: 12V, 1A

Illumination reflected light: Ring with 21 x 2- mA LEDs, 5 levels adjustable

Illumination transmitted light: 7 x 20-mA LEDs, 5 levels adjustable

Environmental conditions: -5 ... 40°C / 23 ... 104°F, 45 ... 85% rh

Dimensions: 300 x 225 x 270 mm / 11.8 x 8.9 x 10.6 in

Weight: About 2.3 kg / 5.1 lbs

Delivery Scope:

1 x Digital microscope PCE-LCM 50

1 x USB mouse

1 x Micro SD card

1 x Protective cover

1 x Contrast disc black / white

1 x Translucent lens

1 x Power supply

1 x Protective film

1 x User manual
