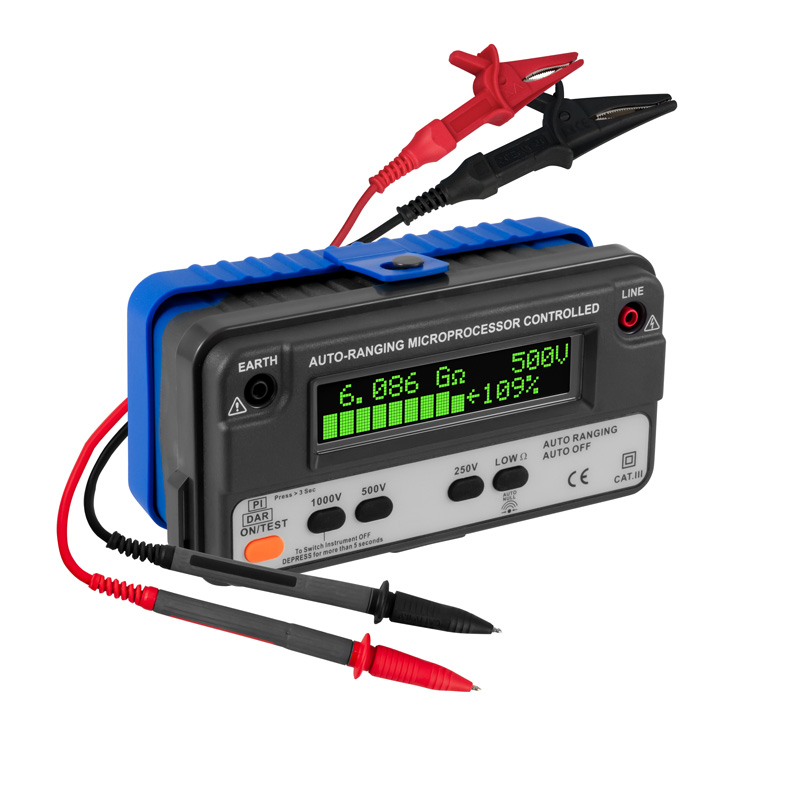

PCE IT 120 Insulation Tester (2 GΩ/ 250V, 4 GΩ/ 500V, 8 GΩ/ 1000V)

Measuring ranges:

2 GΩ / 250V

4 GΩ / 500V

8 GΩ / 1000V

ACV: 0 ... 950V

DCV: 0 ... 700V

Resistance / passage: 0.01 ... 1999 Ω

Resolution: Isolation: 1/10/100 MΩ

ACV: 1V

DCV: 1V

Resistance / passage: 0.01 / 0.1 / 1 Ω

Accuracy: Isolation: ± 3%

ACV: ± 1.5%

DCV: ± 1.5%

Resistance / passage: ± 2.0%

DC test voltage: 250/500 / 1000V

Short circuit current: 1.1-mA

Display: 2-line 16-fold OLED display

Power supply: 8 x 1.5V AA battery

Dimensions: 175 x 85 x 75 mm / 6.9 x 3.3 x 3 in

Weight: About 655 g / 1.4 lbs

Environmental conditions: 0 ... 40°C / 32 ... 104°F

Storage conditions: -10 ... 50°C / 14 ... 122°F

Degree of protection / standardization: IEC 1010-1, 700V CAT III

Delivery Scope:

1 x Insulation tester PCE-IT 120

1 x Test leads crocodile clips

1 x Test leads with measuring tips

8 x 1.5V AA batteries

1 x Bag

1 x Carrying strap

1 x User manual
