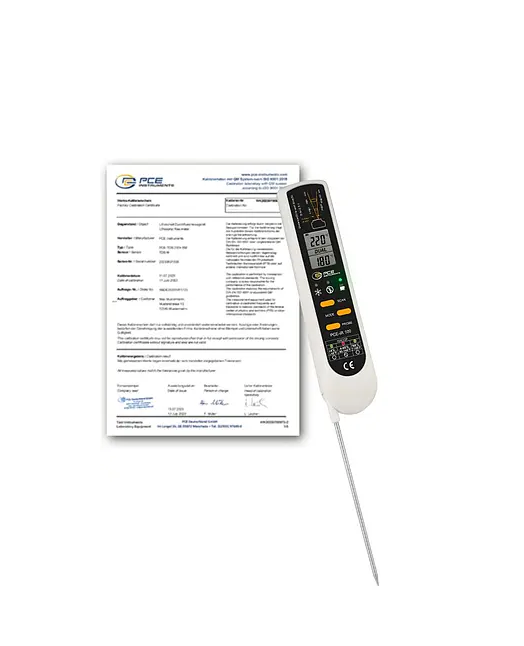

PCE IR 100-ICA Infrared Thermometer (-33~220ºC; -55~330ºC; ISO Calibration Cert)

Non-contact measurement with infrared sensor

Temperature range: -33 ... 220ºC / -27 ... 428ºF

Resolution: 0.2ºC

Accuracy:

-33 ... 0 °C: ± 1 °C + 0.1 / degree

0 ... 65 °C: ± 1 °C

65 ... 200 °C: ± 1.5 % of reading

Response time: < 500 ms

Wavelength: 8 ... 14 µm

Emissivity: Adjustable in intervals of 0.1 ... 1.0 (default is 0.95 - ideal for food)

Distance to target ratio: Spot (FOV) = 2.5:1

Minimum diameter of the measurement point: 11.5 mm / 0.44 in

Contact measurement with sensor probe:

Temperature range: -55 ... 330ºC / -67 ... 626ºF

Resolution: 0.2ºC / 0.36ºF

Accuracy:

Below -5ºC / 23ºF: ± 1ºC / 1.8ºF

Between -5ºC ... 65ºC / 23 ... 149ºF: ± 0.5ºC / 0.9ºF

Above 65ºC: ± 1.0% of reading

Response time: 7 ... 8 seconds

Sensor dimensions: Diameter: 3.2 mm / 0.13 in, Length: 150 mm / 5.91 in

Sensor type: Thermal element (type-K)

General characteristics:

Repeatability: Within the accuracy of the device

Functions: Max / Min / Lock

Operating temperature: 0 ... 50ºC / 32 ... 122ºF

Dimensions (with battery): 190 x 22 x 38 mm / 7.48 x 0.87 x 1.5 in

Power: 2 x 1.5V AAA batteries

Operating time: Approx. 40 hours of continuous use

Measurement point illumination: LED

Holding of values on the display: 15 seconds

Display: 4 positions

Ingress protection rating: IP 65

Delivery Scope:

1 x PCE-IR 100 contact / non-contact food thermometer

2 x Batteries

1 x User manual

1 x ISO calibration certificate
