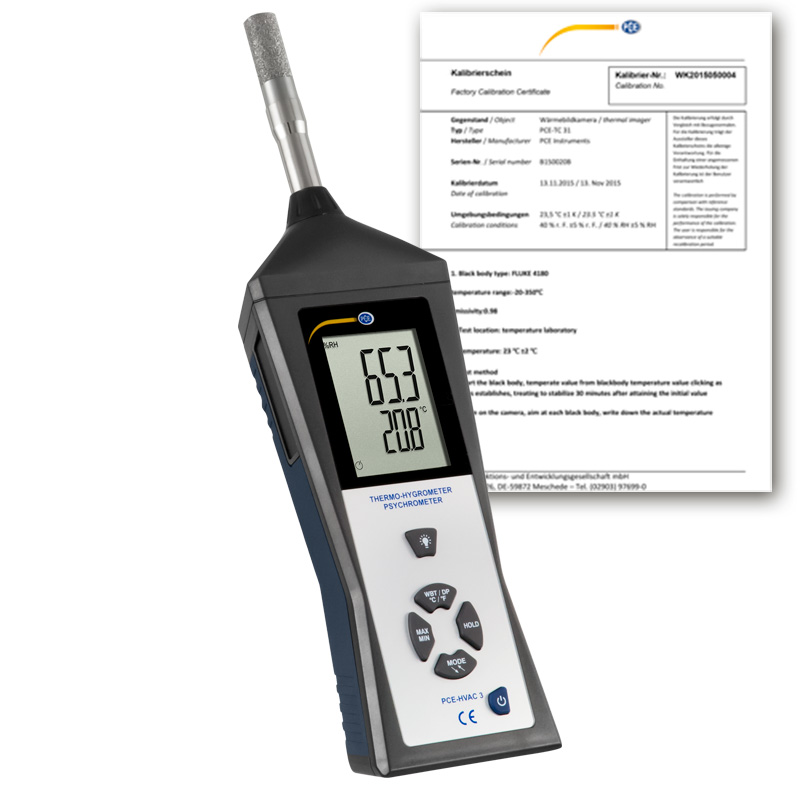

PCE HVAC 3S-ICA Thermo-Hygrometer Psychrometer (-30~100° C; 0~100% RH; ISO Calibration Cert.)

Humidity measuring range:

0 ... 20% (accuracy: ± 4% rh)

20 ... 40% (accuracy: ± 3% rh)

40 ... 60% (accuracy: ± 2% rh)

60 ... 80% (accuracy : ± 3% RH)

80 ... 100% (accuracy: ± 4% RH)

Temperature measuring range:

-30 ... -19.9°C / -22 ... -3.8°F (accuracy: ± 1.0°C / 1.8°F)

-20 ... 60°C / -4 ... 140°F (accuracy: ± 0.5°C / 0.9°F)

60 ... 100°C / 140 ... 212°F (accuracy: ± 1.0°C / 1.8°F)

Resolution air humidity: 0.1%

Resolution temperature: 0.1°C / 0.18°F

Units of measurement: °C; °F

Dew point (°C / °F)

Wet bulb temperature (°C / °F)

Measurement parameters: % RH, GPP (grains per pound), g/kg, g/m³ (absolute), gr/ft³ (absolute)

Display: Dual LCD

Response time: < 15 seconds

Sensor type:

Humidity: Precise capacitive

Temperature: Thermistor

Absolute humidity:

0 ... 500 g/m³

0 ... 218.5 g/ft³

Dew point temperature measuring range: -30 ... 100°C / -22 ... 212°F

Wet bulb temperature measuring range: 0 ... 80°C / 32 ... 176°F

Operating conditions: 0 ... 50°C / 32 ... 122°F, < 80% RH (non-condensing)

Storage conditions: -40 ... 85°C / -40 ... 185°F, < 99% RH (non-condensing)

Power supply: 9V block battery

Battery life: Approx. 48 hours

Dimensions: 300 x 75 x 50 mm / 11.8 x 3 x 2 in

Weight: 400 g / < 1 lb

Delivery Scope:

1 x PCE-HVAC 3S-ICA

1 x Carrying case

1 x Battery

1 x Operating instructions

1 x Sintered filter

1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Datasheet

Manual
