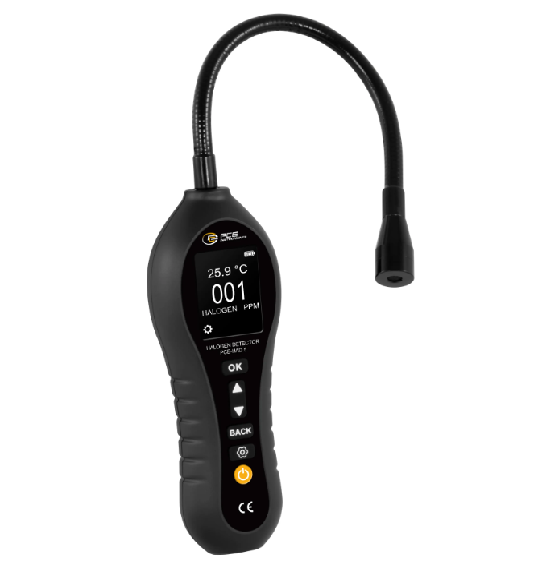

PCE HAD 5 Health & Safety halogen gases detector (0 ~ 1000 ppm)

Specification

Gas

Measurement range up to: 0 ... 1000 ppm

Resolution: 1 ppm

Accuracy: ±5 % FS

Temperature

Measurement range up to: -10 ... +50 °C

Resolution: 0.1 °C

Accuracy: ±1 °C

Temperature

Measurement range up to: 14 ... 122 °F

Resolution: 0.1 °F

Accuracy: ±2 °F

General technical data

Display type: LC colour display

Display size: 2 Inch

Response time: 30 s

Warm-up time: 30 s

Operating time: 6 h

Automatic power-off from...to: 15 ... 60 min.

Automatic power-off can be deactivated: Yes

Tripod thread: 1/4 inch

Refrigerant: R12, R502, R500, R22, R32, R402A, R402B, R409A, R410A, R134a, R404A, R407C, R507, R11, R13, R113, R114, R503, R170, R600a, R1270, R123, R124, R1416, R142b, R403A, R125, R417A, R23, R1343

Sensor length: 265 mm

Alarm: Acoustic, Vibration, optical

Alarm modes: Upper alarm limit adjustable: 110 ... 990 ppm

Lower alarm limit adjustable: 100 ... 890 ppm

Menu language: English, English (GB)

Protection class (device): IP40

Weight: 177 g

Operating conditions: -10 ... 50 °C , 10 ... 99 % RH

Storage conditions: -10 ... 50 °C , 10 ... 99 % RH

(Rechargeable) battery: 4 x 1.5 V AAA battery , Alkali-manganese

Capacity: 1200 mAh

Dimensions ( L x W x H ): 173 x 64 x 30 mm

Delivery Scope

1 x main unit PCE-HAD 5

4 x 1.5 V AAA battery

1 x carrying case

1 x user manual

Datasheet
