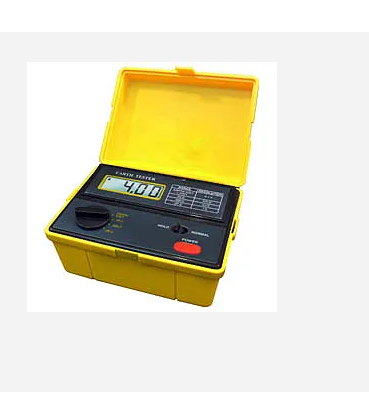

PCE ET 3000 Earth Resistance Meter (0-1999 Ω, 0-200 V AC, 50/60 Hz)

Functions

Earth resistance:

Range: 0 ... 19.99/ 0 ... 199/ y 0 ... 1999 Ω

Resolution: 10/ 100 mΩ / 1 Ω

Accuracy: ± 2% + 2 positions

AC Stress:

Range: 0 ... 200 V AC, 50/60 Hz

Resolution: 0,1 V

Accuracy: ± 3% + 2 positions

Lower measurement limit.: 0.01 Ω

Current of measurement: 2 mAeff / rms

Response time: aprox. 2.5 s

Measuring quota: 4 s

Frequency: 820 Hz

Overload range: in case of overlaoad, „1“ is shown

Power: 6 x 1.5 V batteries

Dimensions: 160 x 120 x 65 mm

Weight: 560 g

Safety: IEC- 1010- 1; EN 61010- 1

instalation category: III

EMV: EN 50081- 1; EN 50082- 1

corresp. DIN/ VDE 0413 part 7

Delivery Scope:

1 x Earth Tester / Earth Resistance Meter PCE-ET 3000

1 x Test cable set (15 m red, 10 m yellow, 5 m green)

1 x Set of earth rods

1 x User manual
