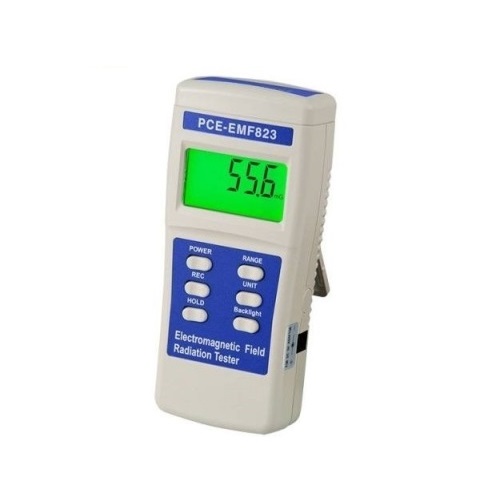

PCE EMF 823 Electromagnetic Field (EMF) Meter

EMF range / resolution: 20 micro Tesla (µT) x 0.01 µT

200 µT x 0.1 µT

2000 µT x 1 µT

200 milli-Gauss (mG) x 0.1 mG

2000 mG x 1 mG

20000 mG x 10 mG

Number of axes: Single axis

EMF bandwidth: 30 Hz to 300 Hz

Sampling time: Approx. 1 second

Accuracy: ±4 % + 3 digits (up to 20 µT)

±5 % + 3 digits (up to 200 µT)

±10 % + 5 digits (up to 2000 µT)

Display: 48.8 x 25.3 mm / 1.92 x 0.1 in LCD with back-light

Overrange indication: Display shows "- - - -"

Operating temperature:0 ... +50°C / +32 ... 122°F

Operating humidity: Max. 80% RH

Power supply: 1 x 9V DC battery (006P, 6F22)

Dimensions: 152 x 69 x 36 mm / 5.98 x 2.72 x 1.42 in

Weight: 215 g / 0.47 lb (including battery)

Delivery Contents

1 x PCE-EMF 823 electromagnetic field (EMF) meter

1 x 9V DC battery

1 x User manual
