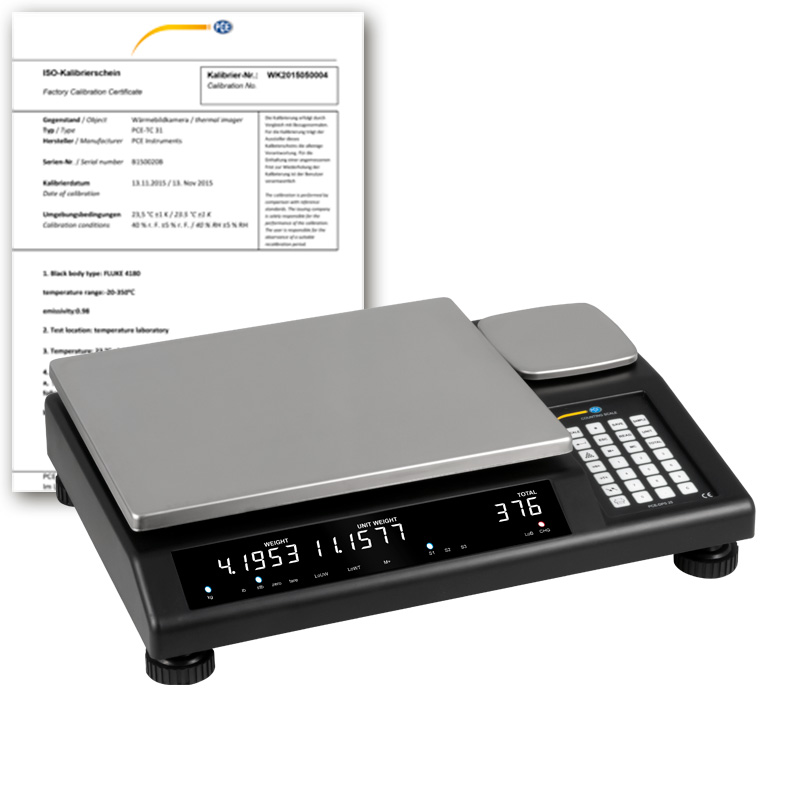

PCE DPS 25-ICA Counting Scale (25 kg/55 lbs, 0.5 g; 1 kg/2.2 lbs, 0.02 g)

-Weighing plate 1

Measuring range: 25 kg / 55 lbs

Measurement accuracy: ±2 g

Resolution: 0.5 g

Weighing plate dimensions: 345 x 260 mm / 13.6 x 10.2 in

-Weighing plate 2

Measuring range: 1 kg / 2.2 lbs

Measurement accuracy: ±0.08 g

Resolution: 0.02 g

Weighing plate dimensions: 114 x 114 mm / 4.5 x 4.5 in

-Further specification

Interfaces: USB-A (connection to PC)

SUB D9 female (connection to external measuring cell)

SUB D9 male (RS232)

Power supply for power pack

primary: 100 ... 240V AC, 50/60 Hz, 0.5 A

secondary: 12 V DC, 1 A

Built-in battery: 2000-mAh

Dimensions: 320 x 120 x 480 mm / 12.6 x 4.7 x 18.9 in

Operating conditions: 0 ... 40°C / 32 ... 104°F

Weight: 8.6 kg / 19 lbs

Delivery Scope:

1 x Counting Scale PCE-DPS 25-ICA

1 x USB-A to USB-A cable

1 x Power supply

1 x Instruction manual

1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
