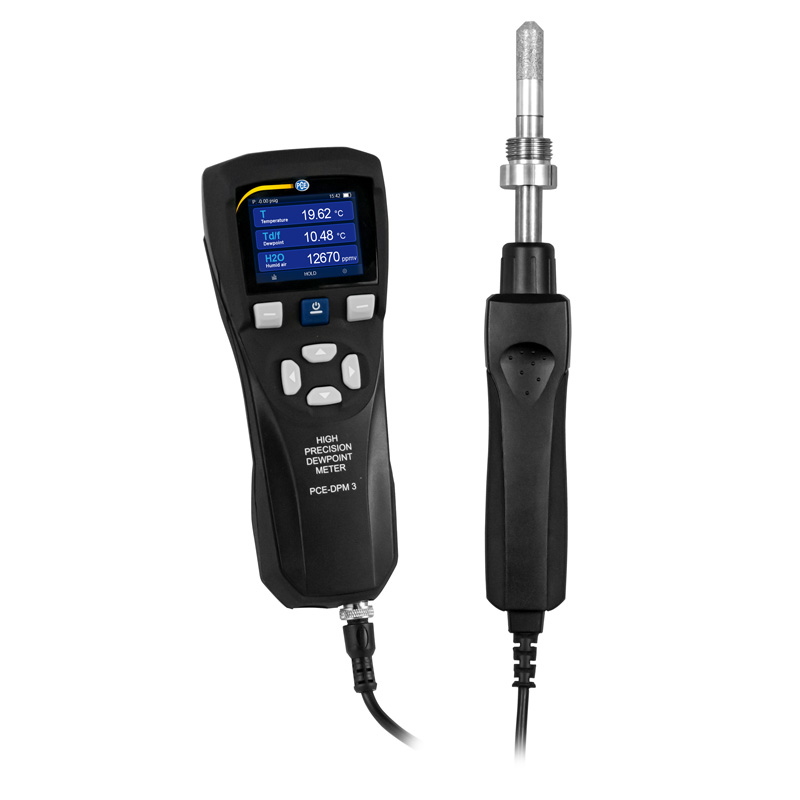

PCE DPM 3 Thermo-Hygrometer (-10~60°C; 0~100%; -50~30 °C)

Measurement: Temperature

Measuring range: -10 ... 60°C / 14 ... 140°F

Resolution: 0.01°C / 0.018°F

Accuracy at 20°C / 68°F: -10 ... 50°C / 14 ... 122°F: ± 0.3°C / 0.5°F

Measurement: Relative humidity

Measuring range: 0 ... 100%

Resolution: 0.01%

Accuracy at 20°C / 68°F:

< 5%: ± (0.025% + 17.5% of mv)

> 5%: ± (1% + 5% of mv)

> 15%: ± (2% + 3% of mv)

Measurement: Dew point*

Measuring range: -50 ... 30°C / -58 ... 86°F

Resolution: 0.01°C / 0.018°F

Accuracy:

-40 ... 20°C / -40 ... 68°F: ± 2°C / 3.6°F

-50 ... -40°C / -58 ... -40°F: ± 2.5°C / 4.5°F

*The accuracy of the dew point relates to an ambient temperature of 16 ... 25°C / 61 ... 77°F

Measurement: H2O

Measuring range: 40 ... 20,000 ppm

Resolution: 1 ppm

Accuracy at 20°C / 68°F: ± (7.3 ppm + 8.3%)

Environmental conditions: -10 ... 60°C / 14 ... 140°F; 0 ... 20 bar (absolute)

Response time at: 0.2 m / s, 1 bar: 0 ... 40°C / 32 ... 104°F: 20s [120s]

20°C / 68°F, 63% RH [90%]: -40 ... 0°C / -40 ... 32°F: 10s [20s]

Data storage: For approx. 50,000 measuring points

Adjustable storage rates: 10 seconds; 1, 5, 10, 20, minutes

Adjustable recording time: 1, 5, 12, 24, 48 hours

File format: CSV

Cable length: Approx. 1.5 m / 4.9 ft

Thread: G1 / 2"

Thread length: 1.2 cm

Probe length: 5.2 cm

Probe width: 1.2 cm

Display: 2.3" LCD

Power supply: Battery 3.7V DC, 3000-mAh

Power supply power pack:

Primary: 100 ... 240V AC, 0.25 A

Secondary: 5V DC, 1 A

Interface: 7 mains connectionMicro USB

Weight: Approx. 610 g / 1.3 lbs

Delivery Scope:

1 x PCE-DPM 3 hygrometer

1 x USB power supply

1 x Micro USB cable

1 x Transport case

1 x Instruction manual
