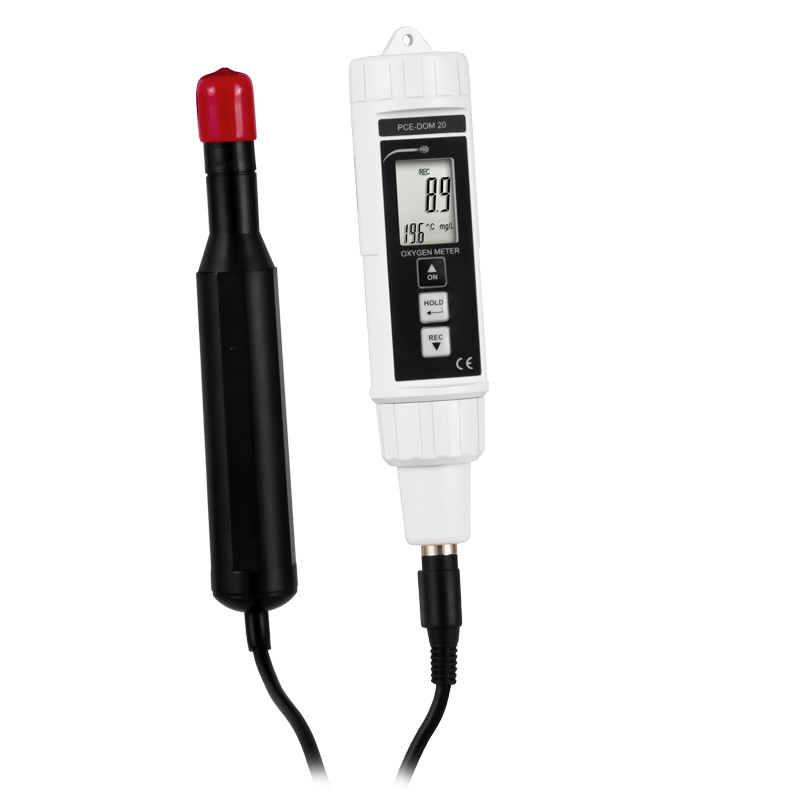

PCE DOM 20 Oxygen Meter (0~20 mg/L; 0~100%; 0~50°C)

Oxygen in liquids

Measuring range: 0 ... 20 mg / L

Resolution: 0.1 mg / L

Accuracy: ± 0.4 mg / L

Oxygen in the air (reference measurement)

Measuring range: 0 ... 100%

Resolution: 0.1%

Accuracy: ± 0.7%

Temperature

Measuring range: 0 ... 50°C / 32 ... 122°F

Resolution: 0.1°C / 0.18°F

Accuracy: ± 0.8°C / 1.4°F

Cable length: 4 m / 13.1 ft

Temperature units: °C / °F

Display: LCD display 29 x 28 mm / 1.1 x 1.1 in

Temperature compensation: Automatically

Storage: MIN, MAX

Automatic shutdown: After approx. 15 minutes

Operating conditions: 0 ... 50°C / 32 ... 122°F, < 80% RH

Power supply: 4 x 1.5V AAA batteries

Power consumption: Approx. 6.2-mA

Dimensions: 180 x 40 x 40 mm / 7.1 x 1.6 x 1.6 in(hand-held device without sensor)

Weight: Approx. 390 g / < 1 lb

Delivery Scope:

1 x Oxygen meter PCE-DOM 20

1 x External oxygen probe (OXPB-11)

1 x Electrolyte (OXEL-03)

2 x Membrane (OXHD-04)

1 x Transport bag

4 x 1.5V AAA batteries

1 x Instruction manual

Datasheet

Manual
