Measuring range: 0 ... 20 kN / 2,000 kg / 2 t
Resolution: 0.002 kN / 2 N
Accuracy: ±0.2% of the measuring range
Measurement units: kN, t, klb, MPa
Display: 2.8" TFT graphic display
Alarm modes: Inside, Outside, Crack/Overload, Shutdown
Sampling rate: 6 ... 1600 Hz
Memory: 100 measurements
Power supply: NiMh battery, 6 V / 1600 mAh
Battery life: approx. 10 hours
Power supply / charging adapter: 12 V / 1 A
Outputs: interface: USB
switching output: 12 V / 50 mA
Protection class handset: IP 54
Protection class load cell: IP 67
Operating and storage conditions: -10 ... 50 °C; 5 ... 95 % r.h. not condensing
Dimensions of load cell: L 76.2 mm / H 101.6 mm / W 27.2 mm / M20 x 1.5 thread / 2800 g (see technical drawing)
Cable length load cell: ca. 6 m
Dimensions of handset: 200 x 97 x 42 mm
Weight of handset: 540 g
Delivery Scope:

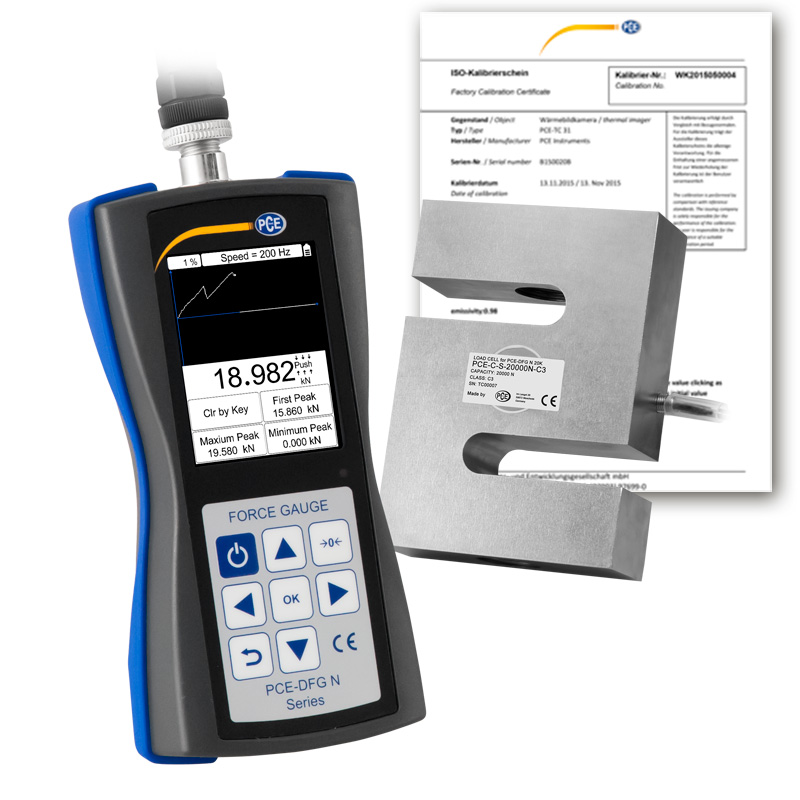

1 x Force Gauge PCE-DFG N 20K
1 x Load cell (depending on model)
1 x USB cable
1 x Charger
1 x PC software
1 x User manual
1 x ISO Calibration certificate
(Eye bolts optional, see accessories)
