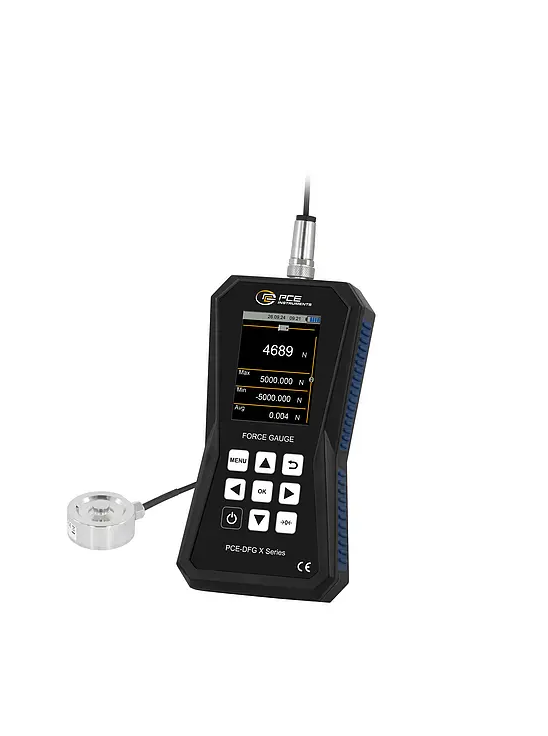

PCE PCE-DFG 5K XF Force Gage (0 ... 5000 N)

Force

Measurement range up to : 0 ... 5000 N

Resolution: 1 N

Accuracy: ±0.05 % FS

General technical data

Units : N, kg, g, t, kn, Pa, kPa, Nm, Ncm, lb, ft

Display type: LCD with backlight

Display size: 2.8 Inch

Adjustable measuring rate: 1 ... 7200 Hz

Storage medium: Internal memory

Storage capacity: 32 GB

Storage interval from: 1 Hz

Storage interval to: 7200 Hz

Interface: USB-C

Operating time: 13 h

Automatic power-off from...to: 1 ... 15 min.

Automatic power-off can be deactivated : Yes

Alarm: optical, Acoustic

Alarm modes: Within, beyond, fracture, off

Protection class measuring cell: IP67

Menu language: Turkish, English, Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese

Protection class (device): IP52

Power supply: USB 5 V DC, 500 mA

Capacity: 2200 mAh

Operating conditions: -20 ... 65 °C , 10 ... 95 % RH

Storage conditions: -20 ... 65 °C , 10 ... 95 % RH

Dimensions ( L x W x H ): 165 x 85 x 32 mm

Other dimensions: Pressure load cell Ø 32 mm / H 16 mm / M5 thread

Weight: 275 g

Other weights: Pressure load cell: 116 g

Delivery Scope

1 x Force Gage PCE-DFG 5K XF

1 x PCE-DFG 5K XF load cell

1 x carrying case

1 x USB-C cable

1 x quick start guide
