Measuring range: 0 ... 1500 µm
Measurement accuracy: ± (3% + 1 µm)
Resolution: 0.1 µm in the measuring range 0 ... 100 µm
1 µm in the measuring range> 100 µm
Units: µm, mm, mils
Smallest curvature: convex 5 mm, concave 25 mm
Smallest measuring area: Ø 20 mm
Minimum thickness of the substrate:
Fe: 0.3 mm
NFe: 0.05 mm
Measuring rate: Max. 2 Hz
Power supply: 9 V block battery
Operating conditions: -10 ... 50 ° C, 20 ... 90% RH non-condensing
Storage conditions: -10 ... 60 ° C, 20 ... 90% RH non-condensing
Dimensions: 143 x 85 x 39 mm
Weight: approx. 100 g
Delivery Scope

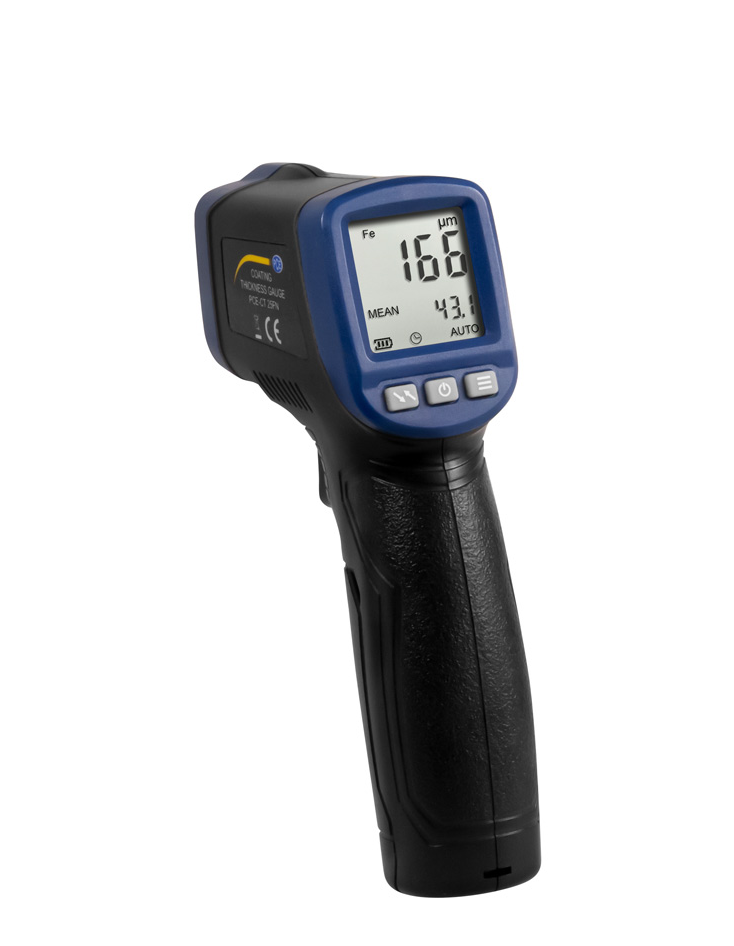

1 x PCE-CT 25FN Coating Thickness Gauge
5 x calibration foil reference
1 x Fe zero standard
1 x NFe zero standard
1 x 9 V block battery
1 x instruction manual
Accessories
Order no.: CAL-CT
ISO Calibration Certificate for Coating Thickness Gauge
