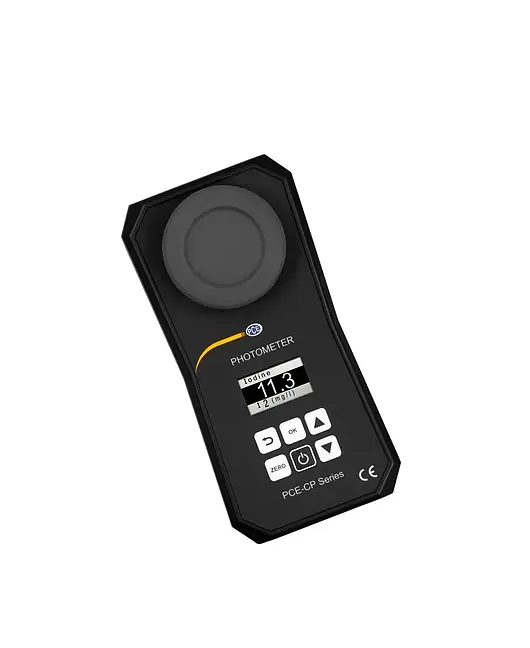

PCE CP 21 Photometer

Chlorine

Measuring range:

0.00 … 2.00 mg/L

2.00 … 3.00 mg/L

3.00 … 4.00 mg/L

4.00 … 8.00 mg/L

Accuracy:

0.10 mg/L

0.23 mg/L

0.75 mg/L

1.00 mg/L

Resolution: 0.01 mg/L

pH

Measuring range: 6.50 ... 8.40 pH

Accuracy: 0.11 pH

Resolution: 0.01 pH

Iron

Measuring range:

0.00 … 0.20 mg/L

0.20 … 0.60 mg/L

0.60 … 1.00 mg/L

Accuracy:

0.02 mg/L

0.04 mg/L

0.08 mg/L

Resolution: 0.01 mg/L

Cyanuric acid

Measuring range:

0 … 15 mg/L

15 … 50 mg/L

50 … 120 mg/L

120 … 160 mg/L

Accuracy:

1 mg/L

5 mg/L

13 mg/L

19 mg/L

Resolution: 1 mg/L

Bromine

Measuring range:

0.0 … 2.5 mg/L

2.5 … 6.5 mg/L

6.5 … 11.0 mg/L

11.0 … 13.5 mg/L

Accuracy:

0.2 mg/L

0.6 mg/L

1.7 mg/L

2.3 mg/L

Resolution: 0.1 mg/L

Iodine

Measuring range:

0.0 … 5.0 mg/L

5.1 … 10.0 mg/L

10.1 … 15.0 mg/L

15.1 … 21.4 mg/L

Accuracy:

0.5 mg/L

0.8 mg/L

2.7 mg/L

3.6 mg/L

Resolution: 0.1 mg/L

Further specification:

Units: mg/l, ppm

Calibration: Zero point calibration

Light source: 503 nm / 570 nm / 620 nm LED

Light detector: Photodiode

Power supply: 4 x 1.5V AA batteries

Dimensions of the cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Menu languages: English, German, French, Spanish and Italian

Storage: Automatic storage of measured values and readout

Storage space: 256 values

Interface: Bluetooth connection with app and PC software

Automatic shutdown: After 300 seconds of inactivity

Operating conditions: 5… 45 °C, 20 ... 90% RH non-condensing

Storage conditions: 5… 45 °C, 20 ... 90% RH non-condensing

Dimensions: 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in

Weight: 230 g / 8.1 oz

Delivery Scope:

1 x Multi-parameter photometer PCE-CP 21 incl. Cuvette

1 x Replacement cuvette

1 x Light protection cover

1 x Microfiber cloth

1 x Plunger

1 x 10 ml dosing pipette

3 x AAA batteries

1 x Quick start guide

1 x Service bag

1 x Free app

1 x Free PC software

1 x Free cloud service

Datasheet

Manual
