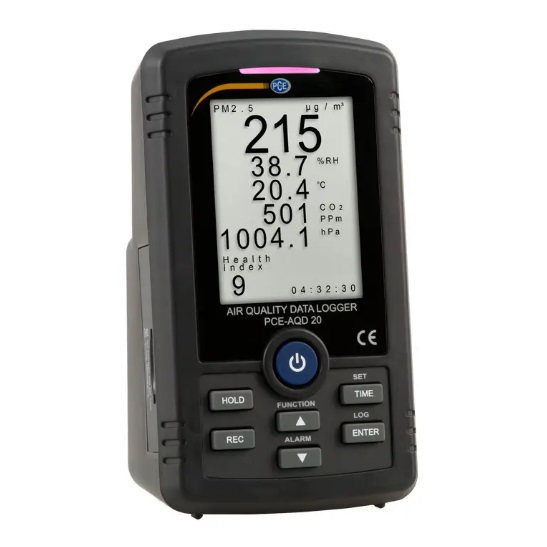

PCE AQD 20 Environmental Meter (0~250 μm/m³, 5~95% rh; 0~50°C; 0~10.000 ppm; 10~1100 hPa)

-Measurement function PM2.5:

Measuring range: 0 ... 250 μm / m³

Resolution: 1 μm / m³

Accuracy: ± (10% of rdg. + 15 μm)

-Measuring function humidity:

Measuring range: 5 ... 95% rh

Resolution: 0.1% RH

Accuracy:

> 70% RH: ± (3% of the prev + 1% RH)

<70% RH: ± 3% RH

-Measuring function temperature:

Measuring range: 0 ... 50°C / 32 ... 122°F

Resolution: 0.1°C / 0.18°F

Accuracy: ± 0.8°C / 1.44°F

-Measurement function CO2:

Measuring range: 0 ... 10,000 ppm

Resolution: 1 ppm

Accuracy:

< 1000 ppm: ± 40 ppm

< 3000 ppm: ± (50 ppm + 3% of rdg.)

> 3000 ppm: ± (50 ppm + 5% of rdg.)

- Measuring function air pressure:

Measuring range: 10 ... 1100 hPa

Resolution: 0.1 hPa

Accuracy: ± 1.5 hPa

Display: LCD display with backlight

Storage: SD card max. 32 GB

Storage rate: 2 ... 3,600 s

Memory error: < 0.1% of the completely stored data

Display: Hold, Max, Min

Measuring rate: About 1 s

Interface: Serial for live visualization on computers (Data cable SOFT-LUT-USB sold separately)

Alarm output: OC output 24V / 70-mA DC

Power supply: 6 x 1.5V AA battery; 9V / 1 A power adapter

Current consumption: 230-mA without lighting; approx. 250-mA with lighting

Operating conditions: 0 ... 50°C / 32 ... 122°F, max. 80% rh

Weight: About 387 g / < 1 lb

Dimensions: 164 x 93 x 72 mm / 6.5 x 3.7 x 2.8 in

Delivery Scope:

1 x Environmental Meter PCE-AQD 20

1 x Mains power adapter 9 V / 1 A

1 x Instruction manual

Datasheet
