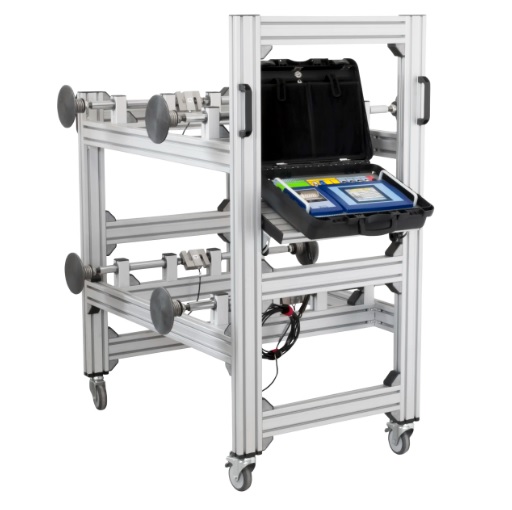

PCE 4PCFM Device Clamp Force Gauge (30.000 N/3.000 kg/3t; 1 kg/2,2 lb)

Sensors: S force cells for tensile and compressive force / Max. 3t per cell

Measuring system: maximum force 30,000 N / 3,000 kg / 3t

Measurement resolution: 1 kg / 2.2 lb

Measurement uncertainty: 0.5% of full scale

Dimensions: 1300 x 1050 x 1550 mm / 51 x 41 x 61"

Construction: 45 x 90 mm / 1.7 x 3.5" aluminum profiles

Measuring distances: The measuring distances can be individually adjusted to the large clamp.

x-axis: 320 … 1050 mm / 12.6 x 41.3" (horizontally)

y-axis: 300 … 1250 mm / 11.8 x 49.2" (vertically)

z-axis: 1000 ... 1050 mm / 39.3 x 41.3" (depth)

Measuring surface: Ø158 mm / 6.2" / self-levelling

Display:graphic touchscreen display 120 x 90 mm / 4.7 x 3.5"

multi-display

total force / force measuring point 1 / force measuring point 2 / force measuring point 3 / force measuring point 4

sum of the forces in the upper / lower / front and rear area

percentage force distribution of the measured values related to the total force

colored display for measurements outside the tolerance

Languages: German; other operator languages can be installed at the factory.

tell us which language you want.

Interface: RS232 with printer; USB as optional storage interface

Printer:thermal printer / 203 dpi / paper width 58 mm / 2.28"

Castors: 4 swivel castors / Ø100 / two of them with double brakes

Power supply: battery operation up to 45 hours / charging time: ca. 10 hours

Weight: ca. 130 kg / 286 lb

Delivery Scope:

1 x Device Clamp Force Gauge PCE-4PCFM with 4 x load cells, 8 x guide shafts, 1 x mains power adapter
