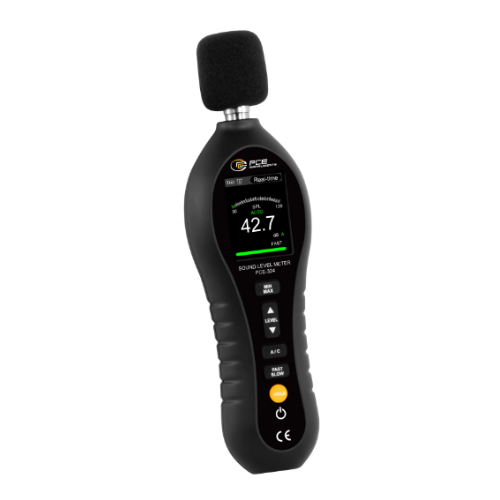

PCE 324 Noise Level Meter (max 130 dBA)

Sound level

Measurement range up to: 30 ... 130 dBA

Resolution: 0.1 dB

Accuracy: ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level

Measurement range up to: 35 ... 130 dBC

Resolution: 0.1 dB

Accuracy: ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level

Measurement range up to: 30 ... 80 dB

Resolution: 0.1 dB

Accuracy: ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level

Measurement range up to: 60 ... 110 dB

Resolution: 0.1 dB

Accuracy: ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level

Measurement range up to: 80 ... 130 dB

Resolution: 0.1 dB

Accuracy: ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

General technical data

Measuring functions: MIN, MAX, HOLD

Time weighting: fast (125 ms), slow (1 s)

Frequency weighting: A, C

Display type: LC colour display with backlight

Display size: 2 Inch

Measuring rate: 2 x per second

Microphone type: Condenser microphone

Standard(s): IEC 61672-1 (Class II)

Automatic power-off: 20 min

Automatic power-off can be deactivated: Yes

Tripod thread: 1/4 inch

Menu language: English, English (GB)

Protection class (device): IP20

Weight: 123 g

Operating conditions: 0 ... 40 °C , 10 ... 80 % RH

Storage conditions: -10 ... 60 °C , 10 ... 70 % RH

(Rechargeable) battery: 4 x 1.5 V AAA battery , Alkali-manganese

Capacity: 1200 mAh

Dimensions ( L x W x H ): 210 x 64 x 32 mm

Delivery Scope

1 x Noise Level Meter PCE-324

1 x carrying bag

4 x 1.5 V AAA batteries

1 x user manual
