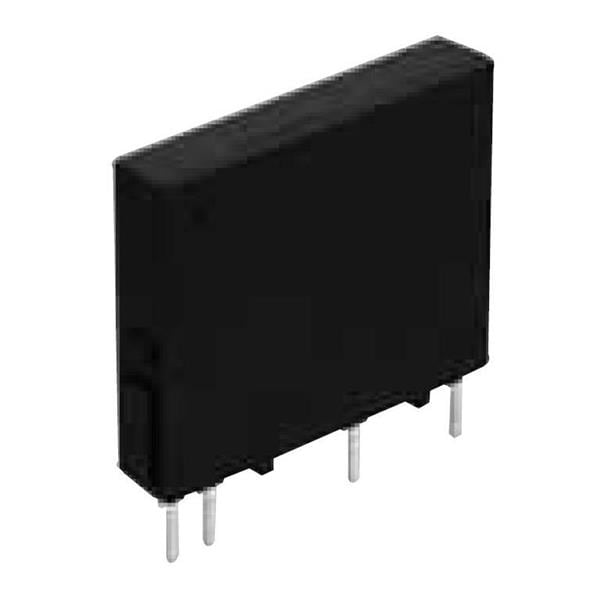

Panasonic Industrial Devices AQZ192 Solid State Relays PhotoMOS DC High Capacity type Relay

Width: 4.5 mm (0.177 in)

Height: 20.5 mm (0.807 in)

Length: 24.5 mm (0.965 in)

Output Type: Photo MOSFET

Unit Weight: 7.714 g

Contact Form: SPST (1 Form A)

Input Current: 50 mA

Mounting Style: PCB Mount

Isolation Voltage: 3 kV

Termination Style: Solder Pin

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 10 A

Load Voltage Rating: 60 VDC

Control Voltage Range: 1.35 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Input to Output Isolation Method: Optocoupler
