- Rated Power (VA): 2000
- Output Form: 1Ø/2Ø; 3Ø
- Output Voltage Max (1Ø/2Ø; 3Ø) (l-n/l-l):
Direct: 135/270; 135/234
Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):
1Ø/2Ø 202/404; 270/540; 338/600
3Ø 202/350; 270/468; 338/585
- Output Current (1Ø/2Ø; 3Ø) (Arms):
Direct: 18/6; 6/Ø
Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):
1Ø/2Ø 12/4; 9/3; 7.2/2.4
3Ø 4/Ø; 3/Ø; 2.4/Ø
- Frequency Range:
Direct: 20~5000
Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1): 45~5000; 45~5000; 45~5000
- Input Power: 3Ø 47-63Hz
- Unit Height (In/mm/U):

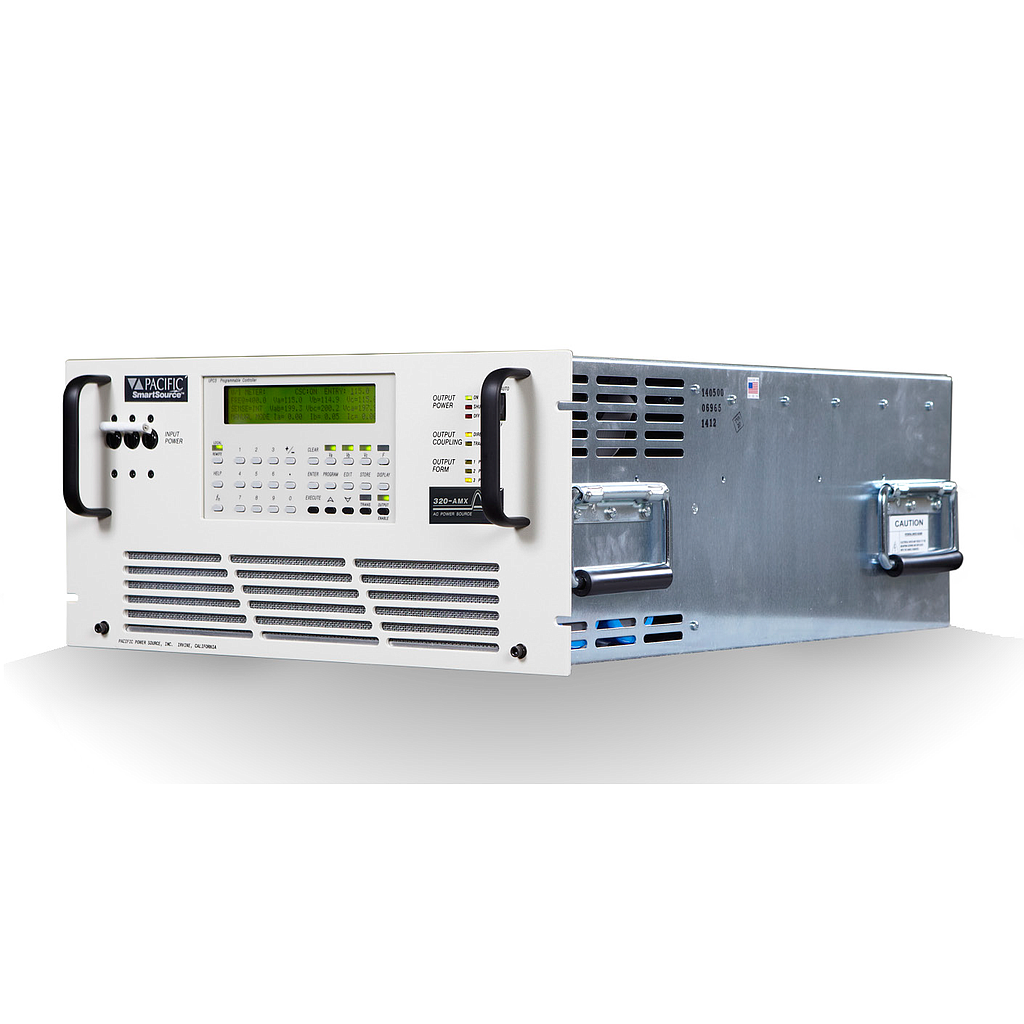

320AMX: 8.75/222/5U
Transformer Module: 5.25/133/3U
- Unit Weight (Lbs/Kg):
320AMX: 125/56.8
Transformer Module: 125 /56.8
- Output Frequency:
20~5,000 Hz Direct Coupled
45~5,000 Hz Transformer Coupled
- Line Regulation: 0.1% max for a ±10% line change
- Load Regulation:
Direct Coupled Ranges:
0.25% 20 ~ 2,000 Hz.
0.50% 2,000 ~ 5,000 Hz
- Output Distortion:
0.1% THDAVG 45 ~ 1,000 Hz
0.25% THDAVG 20 ~ 5,000 Hz
- Ripple and Noise: -72dB
- Response Time: 5 μsec typ
