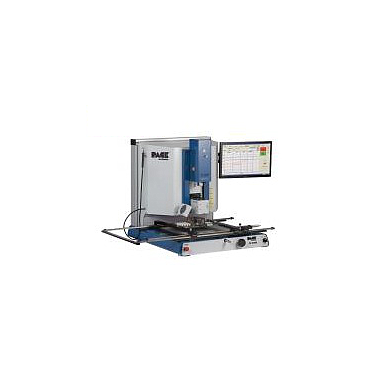

PACEWORLDWIDE TF 2700 Area Array (BGA) Rework
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Power Requirements: 230 VAC, 50 Hz(2800 watts maximum)
Temperature setting range Top Heater: 100°to 400°C (212°to 750°F)
Bottom Heater: 100°to 221°C (212°to 430°F)
Heater (top side): IR, 1200 Watts (400 Watts x 1 & 150 W x 6),
Heater (bottom): 405mm x 405mm (16° x 16°)
Max component size: 65mm x 65mm (2.5" x 2.5°)
Max PCB size: 610mm x 610mm (24° x 24°)
Air Flow maximum: Self contained, PC controlled, adjust up to 20 SLPM
N2 Option: Standard
Resolution on Optics Adjustment: 0.52mm (0.02°) per rotation
Positioning Accuracy (Z axis): ° 25 °meters (0.001°)
Vacuum: 450mm Hg
Optics: High resolution, Vision Overlay System
Video inputs: 2 Composite Video 1 °S° Video (for alignment optics)
Video Monitor Viewable area: 431mm (17°) Integrated Color flat Panel LCD Monitor
Board Supports: Included
Optical Alignment Kit: Included
